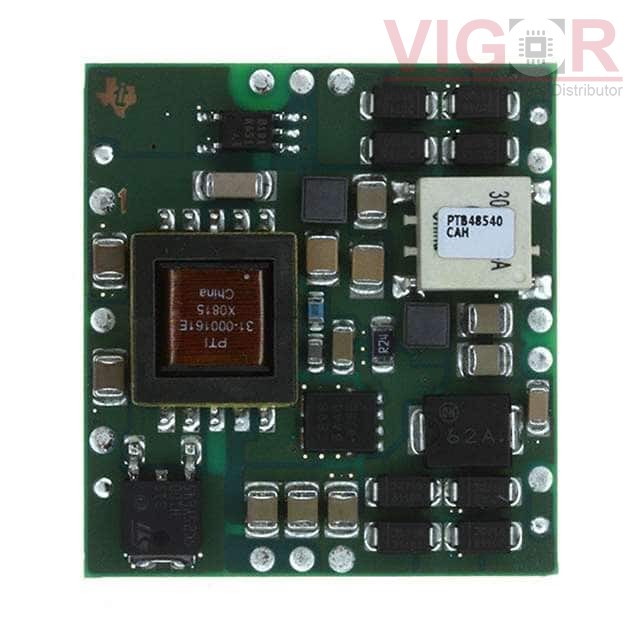

PTB48540BAD

Part No :: PTB48540BAD

Manufacturer: Texas Instruments

VIGOR # :: 5011442

Description: DC DC CONVERTER 3.3V 10W

Catalog: DC DC Converters

DataSheet: PTB48540BAD PDF

Country of origin: -

Date code: -

PTB48540BAD Specifications

Type	Description
Series:	PTB48540 (10W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated PoE Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	57V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	13-DIP Module
Size / Dimension:	1.62" L x 1.50" W x 0.35" H (41.1mm x 38.1mm x 8.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products
