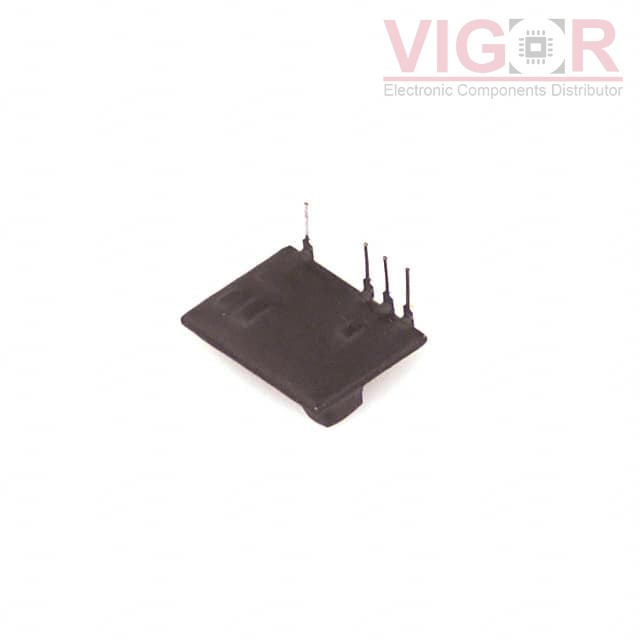

EHD-RD3306

Part No :: EHD-RD3306

Manufacturer: Panasonic

VIGOR # :: 5014703

Description: DC DC CONVERTER 5.1V 1W

Catalog: DC DC Converters

DataSheet: EHD-RD3306 PDF

Country of origin: -

Date code: -

EHD-RD3306 Specifications

Type	Description
Series:	EHD-RD
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	-113V
Voltage - Input (Max):	-170V
Voltage - Output 1:	5.1V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	30mA
Power (Watts):	1 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-25°C ~ 85°C
Efficiency:	46%
Mounting Type:	Through Hole, Right Angle
Package / Case:	6-SIP Module, 4 Leads
Size / Dimension:	0.75" L x 0.59" W x 0.28" H (19.1mm x 15.0mm x 7.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
