PTB48500AAZ

PTB48500AAZ

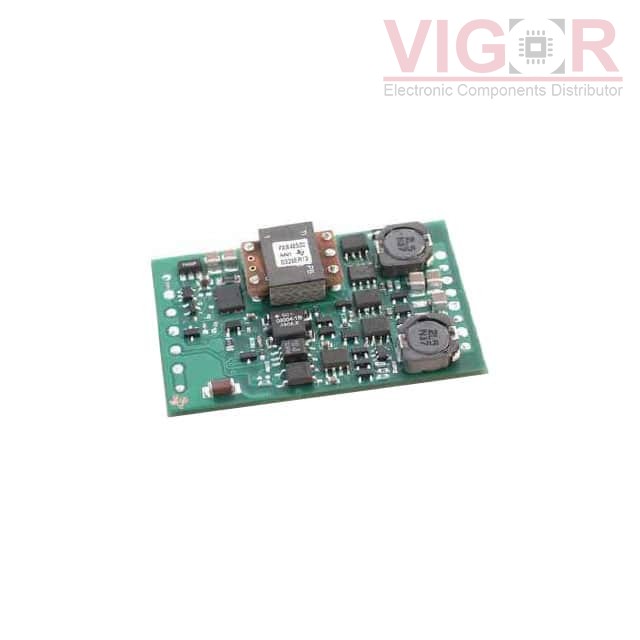

Image is for reference,
please contact us to get the real picture

Part No :

PTB48500AAZ

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 3.3V 1.2V 28W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 27 - Oct 31 2025
DataSheet
PTB48500AAZ PDF
Availability
1423 pieces
Unit Price
$0.00000

Current price of PTB48500AAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTB48500AAZ Specifications
Type Description
Series:PTB4850x
Package:Tray
Part Status:Obsolete
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):36V
Voltage - Input (Max):75V
Voltage - Output 1:3.3V
Voltage - Output 2:1.2V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):6A, 7A
Power (Watts):28 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:Remote On/Off, OCP, OTP, UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:82%
Mounting Type:Surface Mount
Package / Case:10-SMD Module
Size / Dimension:2.22" L x 1.45" W x 0.49" H (56.4mm x 36.8mm x 12.6mm)
Supplier Device Package:-
Control Features:Enable, Active High
Approval Agency:-
Standard Number:-
