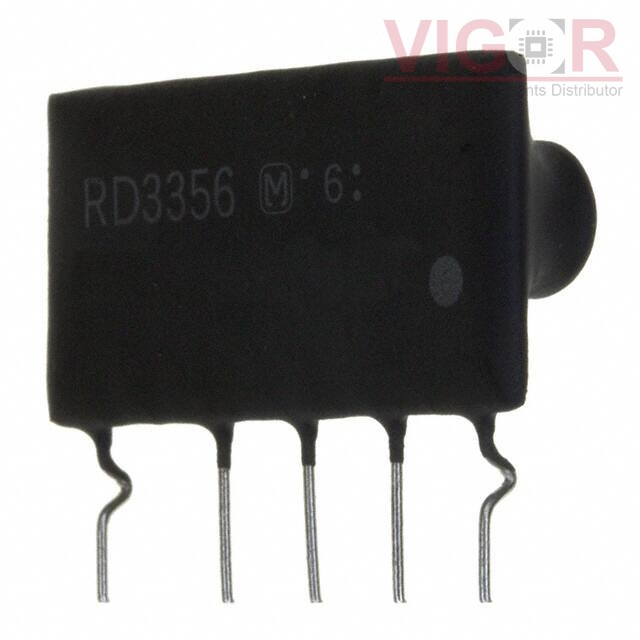

EHD-RD3356

Part No :: EHD-RD3356

Manufacturer: Panasonic

VIGOR # :: 5016896

Description: DC DC CONVERTER 20V 1W

Catalog: DC DC Converters

DataSheet: EHD-RD3356 PDF

Country of origin: -

Date code: -

EHD-RD3356 Specifications

Type	Description
Series:	EHD-RD
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	113V
Voltage - Input (Max):	170V
Voltage - Output 1:	20V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	80mA
Power (Watts):	1 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-20°C ~ 70°C
Efficiency:	76%
Mounting Type:	Through Hole
Package / Case:	10-SIP Module, 5 Leads
Size / Dimension:	1.20" L x 0.39" W x 0.74" H (30.5mm x 10.0mm x 18.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
