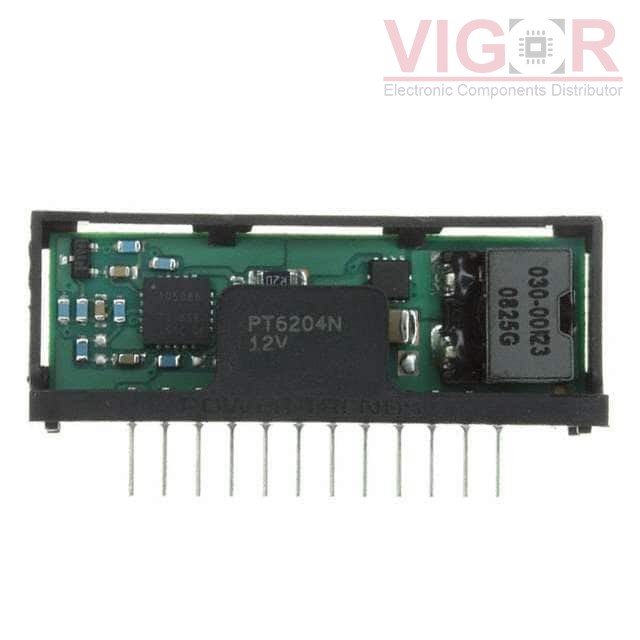

PT6204N

Part No :: PT6204N

Manufacturer: Texas Instruments

VIGOR # :: 5017096

Description: DC DC CONVERTER 12V

Catalog: DC DC Converters

DataSheet: PT6204N PDF

Country of origin: -

Date code: -

PT6204N Specifications

Type	Description
Series:	PT6200
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	14.5V
Voltage - Input (Max):	30V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	93%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R-6112P Match 56%	RECOM Power DC DC CONVERTER 12V 12W	PT6204N vs R-6112P
R-6212P Match 100%	RECOM Power DC DC CONVERTER 12V 24W	PT6204N vs R-6212P
R-629.0P Match 61%	RECOM Power DC DC CONVERTER 9V 18W	PT6204N vs R-629.0P
PT6204R Match 100%	Texas Instruments DC DC CONVERTER 12V	PT6204N vs PT6204R
