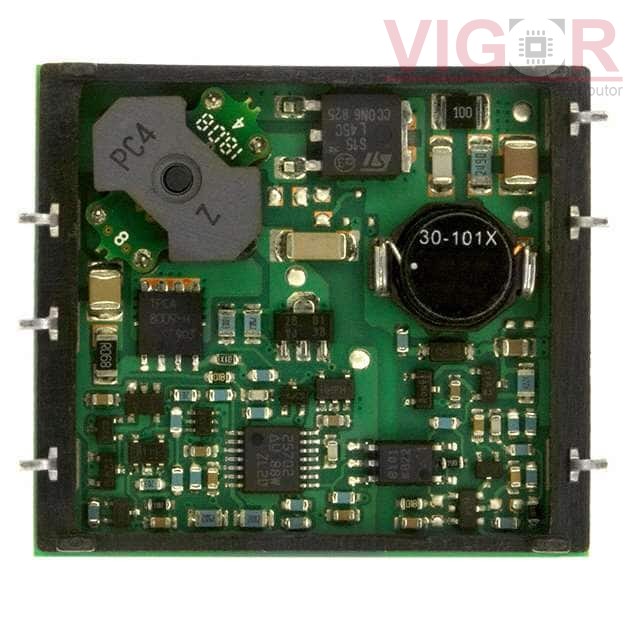

PT4141A

Part No :: PT4141A

Manufacturer: Texas Instruments

VIGOR # :: 5017364

Description: DC DC CONVERTER 3.3V 20W

Catalog: DC DC Converters

DataSheet: PT4141A PDF

Country of origin: -

Date code: -

PT4141A Specifications

Type	Description
Series:	PT4140 (20W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	40V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole, Right Angle
Package / Case:	6-DIP Module
Size / Dimension:	1.73" L x 1.52" W x 0.33" H (43.9mm x 38.6mm x 8.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4142A Match 55%	Texas Instruments DC DC CONVERTER 5V 20W	PT4141A vs PT4142A
PT4146A Match 64%	Texas Instruments DC DC CONVERTER 1.5V 20W	PT4141A vs PT4146A
