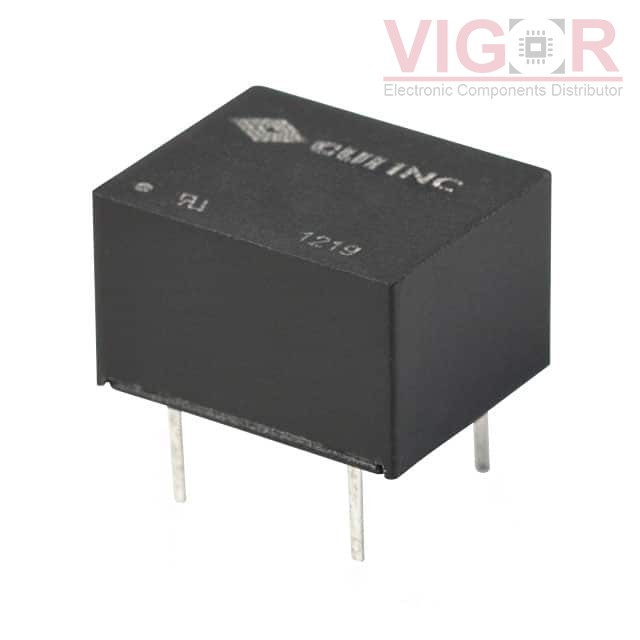

VBSD1-S24-S15-DIP

Part No :: VBSD1-S24-S15-DIP

Manufacturer: CUI Inc.

VIGOR # :: 5018739

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: VBSD1-S24-S15-DIP PDF

Country of origin: -

Date code: -

VBSD1-S24-S15-DIP Specifications

Type	Description
Series:	VBSD1-DIP (1W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SMA01N-15 Match 95%	MEAN WELL DC DC CONVERTER 15V 1W	VBSD1-S24-S15-DIP vs SMA01N-15
PDS1-S24-S12-D Match 66%	CUI Inc. DC DC CONVERTER 12V 1W	VBSD1-S24-S15-DIP vs PDS1-S24-S12-D
PDS1-S24-S15-D Match 95%	CUI Inc. DC DC CONVERTER 15V 1W	VBSD1-S24-S15-DIP vs PDS1-S24-S15-D
B2415D-1WR3 Match 95%	Mornsun DC DC CONVERTER 15V 1W	VBSD1-S24-S15-DIP vs B2415D-1WR3
DA01S2415A Match 86%	Delta Electronics / Power DC DC CONVERTER 15V 1W	VBSD1-S24-S15-DIP vs DA01S2415A
F2415N-1WR3 Match 86%	Mornsun DC DC CONVERTER 15V 1W	VBSD1-S24-S15-DIP vs F2415N-1WR3
