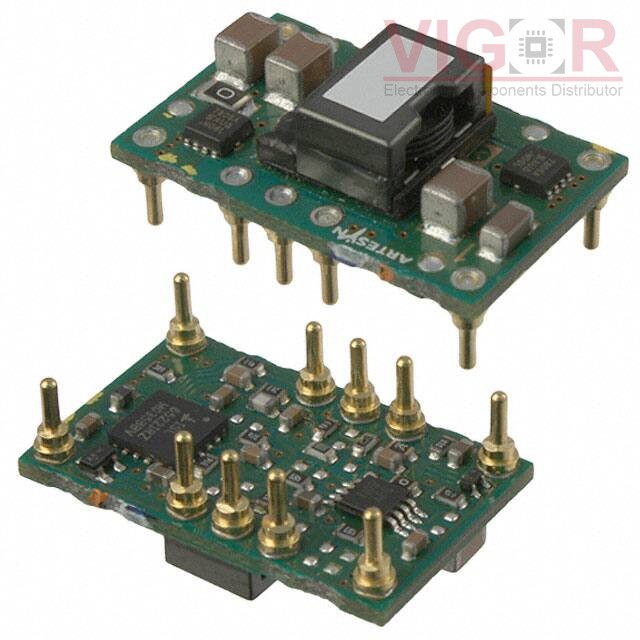

PTH12060YAD

Part No :: PTH12060YAD

Manufacturer: Emerson Embedded Power (Artesyn Embedded Technologies)

VIGOR # :: 5019347

Description: DC DC CONVERTER 0.55-1.8V 18W

Catalog: DC DC Converters

DataSheet: PTH12060YAD PDF

Country of origin: -

Date code: -

PTH12060YAD Specifications

Type	Description
Series:	PTHxx060Y (18W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	0.55 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	18 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	83%
Mounting Type:	Through Hole
Package / Case:	10-DIP Module
Size / Dimension:	0.10" L x 0.62" W x 0.35" H (2.5mm x 15.8mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH12060LAH Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.8V	PTH12060YAD vs PTH12060LAH
PTH12010YAH Match 74%	VIGOR PTH12010Y 15 A 12-V INPUT BUS TE	PTH12060YAD vs PTH12010YAH
PTH12060WAD Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 10A	PTH12060YAD vs PTH12060WAD
PTH12010LAH Match 74%	Texas Instruments DC DC CONVERTER 0.8-1.8V	PTH12060YAD vs PTH12010LAH
PTH12060YAH Match 100%	Texas Instruments DC DC CONVERTER 0.55-1.8V	PTH12060YAD vs PTH12060YAH
PMF8118TP Match 100%	Flex Power Modules DC DC CONVERTER 0.8-1.8V 18W	PTH12060YAD vs PMF8118TP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 492

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PTH12060YAD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
