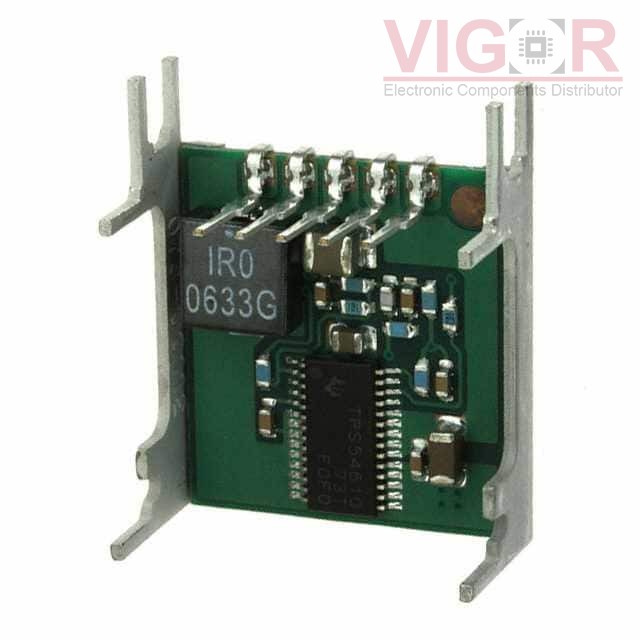

PT5402C

Part No :: PT5402C

Manufacturer: Texas Instruments

VIGOR # :: 5020122

Description: DC DC CONVERTER 2.5V

Catalog: DC DC Converters

DataSheet: PT5402C PDF

Country of origin: -

Date code: -

PT5402C Specifications

Type	Description
Series:	Excalibur™ PT5400
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	2.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	91%
Mounting Type:	Surface Mount
Package / Case:	5-SMD Module
Size / Dimension:	1.11" L x 0.90" W x 0.31" H (28.2mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH05000WAZ Match 100%	Texas Instruments DC DC CONVERTER 0.9-3.6V	PT5402C vs PTH05000WAZ
PTH05000WAZT Match 100%	VIGOR PTH05000W 6 A, 5-V INPUT WIDE-OU	PT5402C vs PTH05000WAZT
TOS 06-05SM Match 100%	TRACO Power DC DC CONVERTER 0.75-3.3V 20W	PT5402C vs TOS 06-05SM
PTH05000WAST Match 100%	VIGOR PTH05000W 6 A, 5-V INPUT WIDE-OU	PT5402C vs PTH05000WAST
PTH05000WAS Match 100%	Texas Instruments DC DC CONVERTER 0.9-3.6V	PT5402C vs PTH05000WAS
YNM05S06-G Match 100%	Power-One (Bel Power Solutions) DC DC CONVERTER 0.7525-3.63V 22W	PT5402C vs YNM05S06-G
