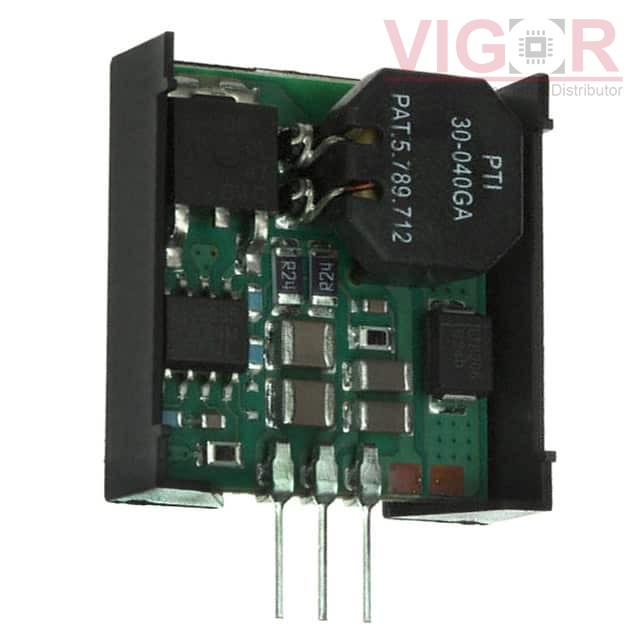

PT78NR212V

Part No :: PT78NR212V

Manufacturer: Texas Instruments

VIGOR # :: 5021314

Description: DC DC CONVERTER -12V

Catalog: DC DC Converters

DataSheet: PT78NR212V PDF

Country of origin: -

Date code: -

PT78NR212V Specifications

Type	Description
Series:	PT78NR200 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	15V
Voltage - Output 1:	-12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	0°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	1.01" L x 0.38" W x 0.98" H (25.7mm x 9.7mm x 24.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LCW78_03-1.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	PT78NR212V vs LCW78_03-1.0
PSR1.0-6P5 Match 100%	P-Duke Technology, Inc. NON-ISOLATED / 1A/ VOUT:6.5	PT78NR212V vs PSR1.0-6P5
LCW78_05-1.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	PT78NR212V vs LCW78_05-1.0
R-78C1.8-1.0/X9 Match 100%	RECOM Power DC DC CONVERTER 1.8V 1.8W	PT78NR212V vs R-78C1.8-1.0/X9
R-78E12-1.0/X9 Match 100%	RECOM Power 1A DC/DC-CONVERTER 'INNOLINE' SI	PT78NR212V vs R-78E12-1.0/X9
AMSRI1-7805L-NZ Match 100%	DComponents DC DC CONVERTER 5V 5W	PT78NR212V vs AMSRI1-7805L-NZ
