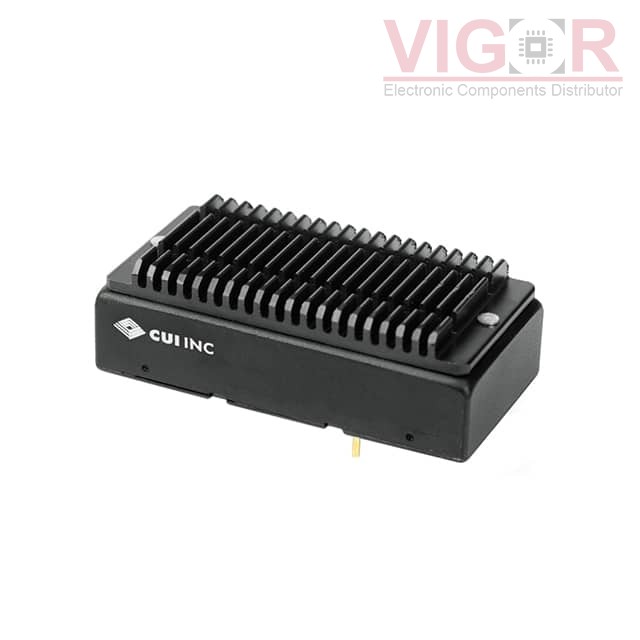

PYB15-Q48-S5-H

Part No :: PYB15-Q48-S5-H

Manufacturer: CUI Inc.

VIGOR # :: 5021767

Description: DC DC CONVERTER 5V 15W

Catalog: DC DC Converters

DataSheet: PYB15-Q48-S5-H PDF

Country of origin: -

Date code: -

PYB15-Q48-S5-H Specifications

Type	Description
Series:	PYB15 (15W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.64" H (50.8mm x 25.4mm x 16.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CCG154805S Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 5V 15W	PYB15-Q48-S5-H vs CCG154805S
BTI48-05S300D Match 100%	Bellnix Co., LTD. DC DC CONVERTER 5V 15W	PYB15-Q48-S5-H vs BTI48-05S300D
JTK1548S05 Match 99%	XP Power DC DC CONVERTER 5V 15W	PYB15-Q48-S5-H vs JTK1548S05
PXA15-48WS05/NT Match 95%	TDK-Lambda, Inc. DC DC CONVERTER 5V 15W	PYB15-Q48-S5-H vs PXA15-48WS05/NT
SKMW15G-05 Match 91%	MEAN WELL DC DC CONVERTER 5V 15W	PYB15-Q48-S5-H vs SKMW15G-05
