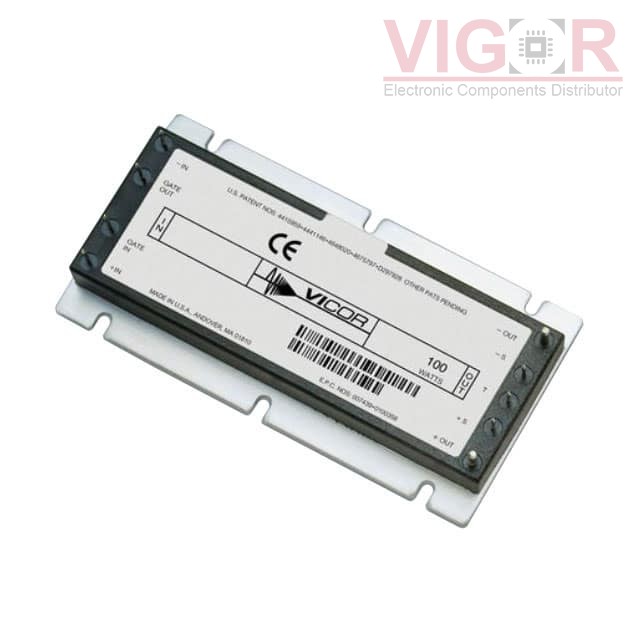

MI-22J-MW-F1

Part No :: MI-22J-MW-F1

Manufacturer: Vicor

VIGOR # :: 5021994

Description: DC DC CONVERTER 36V 100W

Catalog: DC DC Converters

DataSheet: MI-22J-MW-F1 PDF

Country of origin: -

Date code: -

MI-22J-MW-F1 Specifications

Type	Description
Series:	MI-200™ (100W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	50V
Voltage - Output 1:	36V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.78A
Power (Watts):	100 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP
Operating Temperature:	-55°C ~ 85°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	Full Brick
Size / Dimension:	4.20" L x 2.40" W x 0.75" H (106.7mm x 61.0mm x 19.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
MI-22J-MW Match 100%	Vicor DC DC CONVERTER 36V 100W	MI-22J-MW-F1 vs MI-22J-MW
MI-22J-MW-F4 Match 100%	Vicor DC DC CONVERTER 36V 100W	MI-22J-MW-F1 vs MI-22J-MW-F4
MI-22J-MW-F3 Match 100%	Vicor DC DC CONVERTER 36V 100W	MI-22J-MW-F1 vs MI-22J-MW-F3
MI-22J-MW-S Match 100%	Vicor DC DC CONVERTER 36V 100W	MI-22J-MW-F1 vs MI-22J-MW-S
MI-22J-MW-F2 Match 100%	Vicor DC DC CONVERTER 36V 100W	MI-22J-MW-F1 vs MI-22J-MW-F2
MI-22L-MX-S Match 67%	Vicor DC DC CONVERTER 28V 75W	MI-22J-MW-F1 vs MI-22L-MX-S

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 87

Shipped from

HK warehouse

Expected Shipping Date

Nov 02 - Nov 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of MI-22J-MW-F1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
