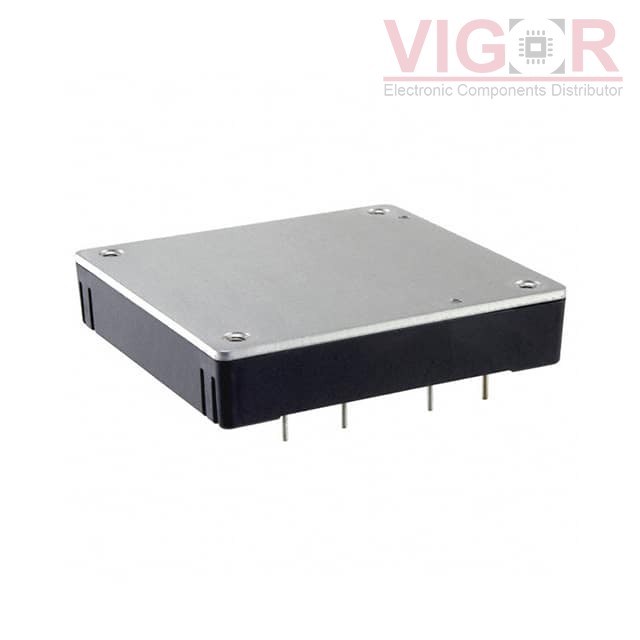

PAH75D24-3325

Part No :: PAH75D24-3325

Manufacturer: TDK-Lambda, Inc.

VIGOR # :: 5022452

Description: DC DC CONVERTER 3.3V 2.5V 75W

Catalog: DC DC Converters

DataSheet: PAH75D24-3325 PDF

Country of origin: -

Date code: -

PAH75D24-3325 Specifications

Type	Description
Series:	PAH75D
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	2.5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	15A, 15A
Power (Watts):	75 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module, 1/2 Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	-
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-
