MV036F240M005 – Vicor 120W Voltage Transformation Module

Part No :: MV036F240M005

Manufacturer: Vicor

VIGOR # :: 5023332

Description: DC DC CONVERTER 24V 120W

Catalog: DC DC Converters

DataSheet: MV036F240M005 PDF

Country of origin: -

Date code: -

Product Description

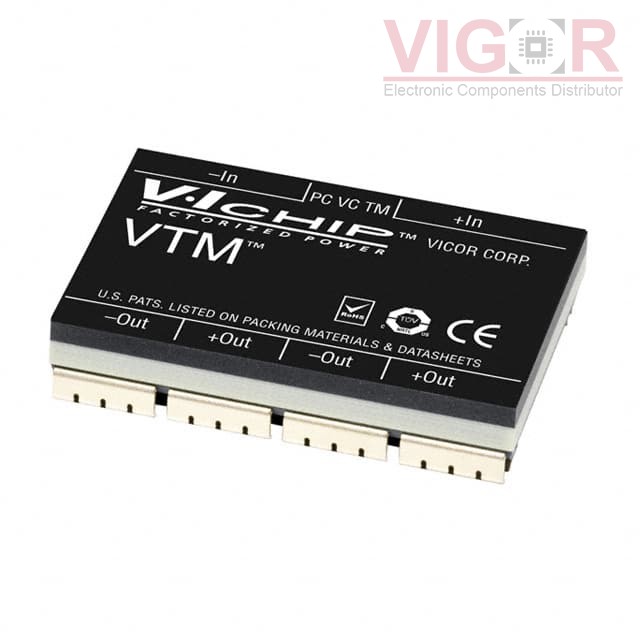

The MV036F240M005 from Vicor is a 120W voltage transformation module in the VI Chip® VTM® family.

It converts a 26V–50V input into a regulated 24V output, delivering up to 5A of output current.

Review the complete MV036F240M005 specifications below, or request a quote for current stock and lead-time pricing.

MV036F240M005 Specifications

Type	Description
Series:	VI Chip® VTM®
Package:	Tray
Part Status:	Obsolete
Type:	Voltage Transformation Module
Number of Outputs:	1
Voltage - Input (Min):	26V
Voltage - Input (Max):	50V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	120 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-55°C ~ 125°C
Efficiency:	95%
Mounting Type:	Surface Mount
Package / Case:	Module
Size / Dimension:	1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
MVTM36BF240M005A00 Match 93%	Vicor DC DC CONVERTER 24V 150W	MV036F240M005 vs MVTM36BF240M005A00
MVTM36BF180M007A00 Match 54%	Vicor DC DC CONVERTER 18V 150W	MV036F240M005 vs MVTM36BF180M007A00
MV036F180M007 Match 63%	Vicor DC DC CONVERTER 18V 120W	MV036F240M005 vs MV036F180M007
MV036F240M005A Match 93%	Vicor DC DC CONVERTER 24V 150W	MV036F240M005 vs MV036F240M005A
MV036F180M007A Match 54%	Vicor DC DC CONVERTER 18V 150W	MV036F240M005 vs MV036F180M007A
