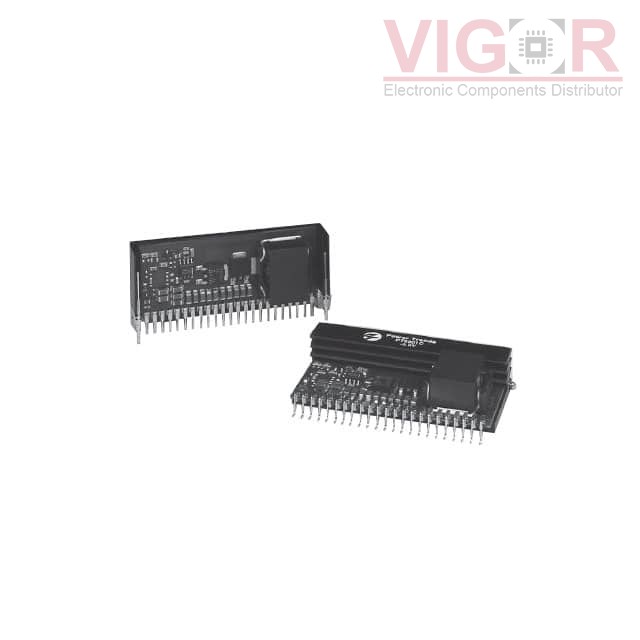

PT6905A

Part No :: PT6905A

Manufacturer: Texas Instruments

VIGOR # :: 5023468

Description: DC DC CONVERTER -5.2V

Catalog: DC DC Converters

DataSheet: PT6905A PDF

Country of origin: -

Date code: -

PT6905A Specifications

Type	Description
Series:	PT6900 (12W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	3.6V
Voltage - Output 1:	-5.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	0°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole, Right Angle
Package / Case:	23-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6915A Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PT6905A vs PT6915A
