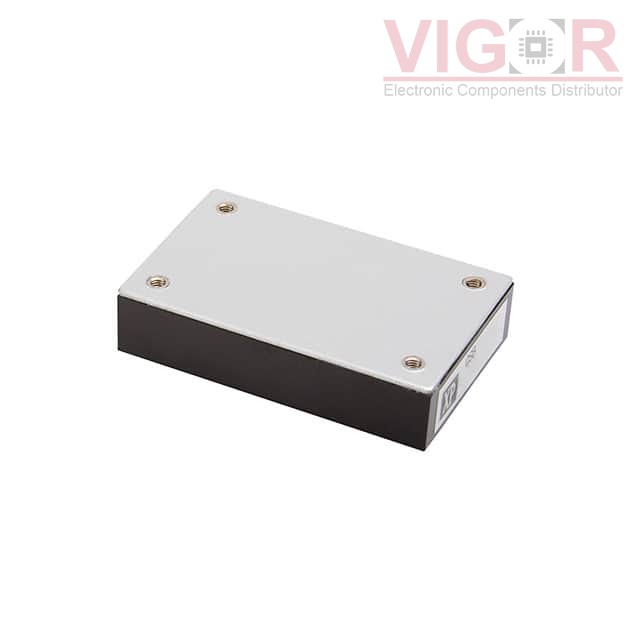

QSB10024S12N

Part No :: QSB10024S12N

Manufacturer: XP Power

VIGOR # :: 5023944

Description: DC DC CONVERTER 12V 100W

Catalog: DC DC Converters

DataSheet: QSB10024S12N PDF

Country of origin: -

Date code: -

QSB10024S12N Specifications

Type	Description
Series:	QSB (100W)
Package:	-
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8.3A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	86.5%
Mounting Type:	Through Hole
Package / Case:	Quarter Brick
Size / Dimension:	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Supplier Device Package:	Quarter Brick
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
V28C12M100BL2 Match 91%	Vicor DC DC CONVERTER 12V 100W	QSB10024S12N vs V28C12M100BL2
V28C12H100BL Match 91%	Vicor DC DC CONVERTER 12V 100W	QSB10024S12N vs V28C12H100BL
V28C12T100BF2 Match 91%	Vicor DC DC CONVERTER 12V 100W	QSB10024S12N vs V28C12T100BF2
V28C12M100BS2 Match 91%	Vicor DC DC CONVERTER 12V 100W	QSB10024S12N vs V28C12M100BS2
V28C12T100BL Match 91%	Vicor DC DC CONVERTER 12V 100W	QSB10024S12N vs V28C12T100BL
V28C12H100BF3 Match 91%	Vicor DC DC CONVERTER 12V 100W	QSB10024S12N vs V28C12H100BF3
