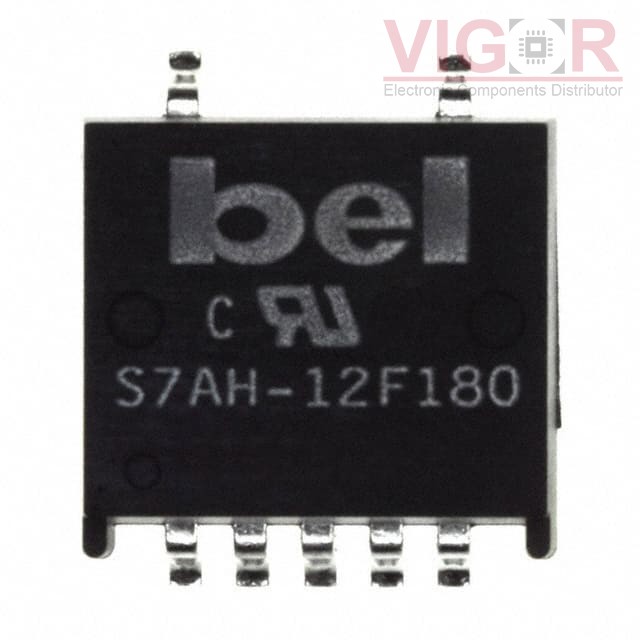

S7AH-12F1800

Part No :: S7AH-12F1800

Manufacturer: Bel Fuse, Inc.

VIGOR # :: 5024061

Description: DC DC CONVERTER 1.8V 21W

Catalog: DC DC Converters

DataSheet: S7AH-12F1800 PDF

Country of origin: -

Date code: -

S7AH-12F1800 Specifications

Type	Description
Series:	x7AH-12F
Package:	Tube
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	12A
Power (Watts):	21 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Surface Mount
Package / Case:	7-SMD Module
Size / Dimension:	0.78" L x 0.70" W x 0.32" H (19.7mm x 17.8mm x 8.1mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
BST04-0.7S16PCM Match 59%	Bellnix Co., LTD. DC DC CONVERTER 0.75-3.3V	S7AH-12F1800 vs BST04-0.7S16PCM
SRBC-10F2ALG Match 52%	Bel Fuse, Inc. DC DC CONVERTER 0.75-3.63V 36W	S7AH-12F1800 vs SRBC-10F2ALG
SRBC-10F2A0G Match 52%	Bel Fuse, Inc. DC DC CONVERTER 0.75-3.63V 36W	S7AH-12F1800 vs SRBC-10F2A0G
S7AH-12F1500 Match 76%	Bel Fuse, Inc. DC DC CONVERTER 1.5V 18W	S7AH-12F1800 vs S7AH-12F1500
SRAH-12F150R Match 76%	Bel Fuse, Inc. DC DC CONVERTER 1.5V 18W	S7AH-12F1800 vs SRAH-12F150R
SRAH-12F180R Match 98%	Bel Fuse, Inc. DC DC CONVERTER 1.8V 22W	S7AH-12F1800 vs SRAH-12F180R
