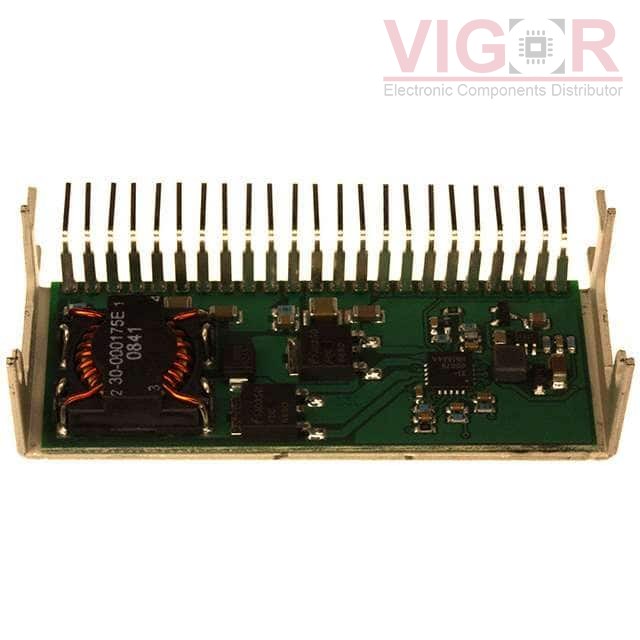

PT6702A

Part No :: PT6702A

Manufacturer: Texas Instruments

VIGOR # :: 5024411

Description: DC DC CONVERTER 1.3-2.05V

Catalog: DC DC Converters

DataSheet: PT6702A PDF

Country of origin: -

Date code: -

PT6702A Specifications

Type	Description
Series:	Excalibur™ PT6701
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	3.6V
Voltage - Output 1:	1.3 ~ 2.05V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	13A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole, Right Angle
Package / Case:	23-SIP Module
Size / Dimension:	2.58" L x 1.19" W x 0.50" H (65.5mm x 30.2mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT6703A Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT6702A vs PT6703A
