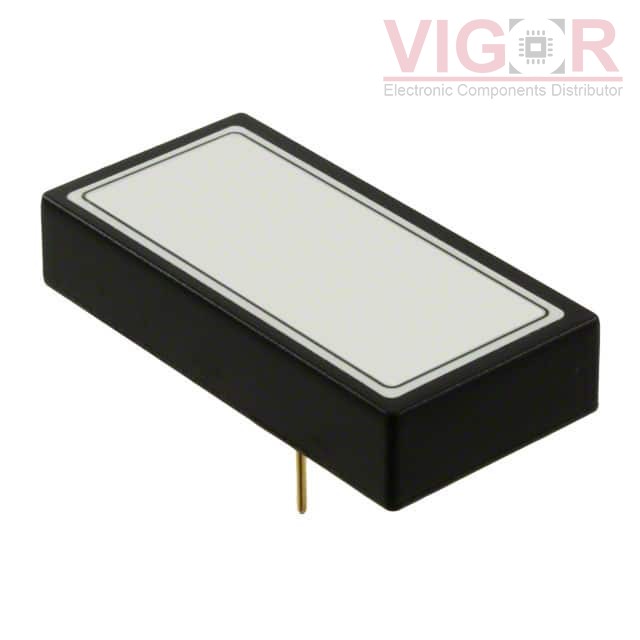

PTK10-Q24-S3

Part No :: PTK10-Q24-S3

Manufacturer: CUI Inc.

VIGOR # :: 5025339

Description: DC DC CONVERTER 3.3V 10W

Catalog: DC DC Converters

DataSheet: PTK10-Q24-S3 PDF

Country of origin: -

Date code: -

PTK10-Q24-S3 Specifications

Type	Description
Series:	PTK10 (10W)
Package:	Box
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.4A
Power (Watts):	10 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	OCP, OVP
Operating Temperature:	-20°C ~ 71°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	5-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EC4BW07 Match 80%	Cincon DC DC CONVERTER 3.3V 6.6W	PTK10-Q24-S3 vs EC4BW07
EC4BW01 Match 57%	Cincon DC DC CONVERTER 5V 10W	PTK10-Q24-S3 vs EC4BW01
AEE04F18-L Match 52%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 3.3V 15W	PTK10-Q24-S3 vs AEE04F18-L
PTK10-Q24-S5 Match 57%	CUI Inc. DC DC CONVERTER 5V 10W	PTK10-Q24-S3 vs PTK10-Q24-S5
AA10U-024L-033S Match 85%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 3.3V 10W	PTK10-Q24-S3 vs AA10U-024L-033S
