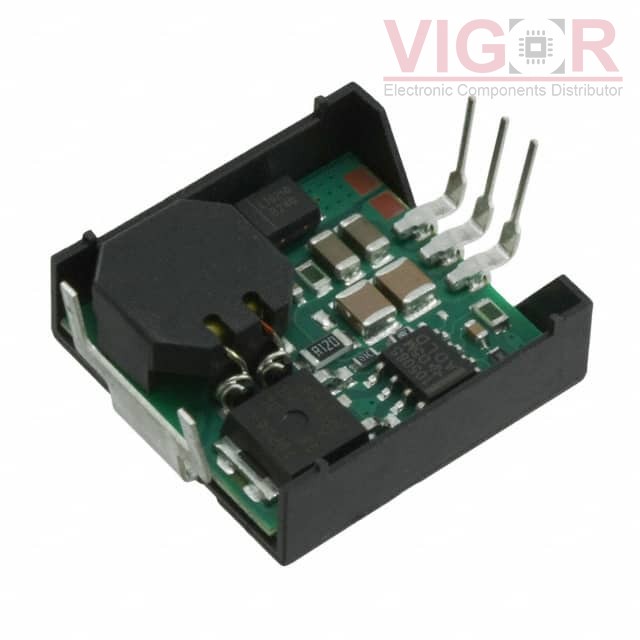

78SR114HC

Part No :: 78SR114HC

Manufacturer: Texas Instruments

VIGOR # :: 5026197

Description: DC DC CONVERTER 13.9V

Catalog: DC DC Converters

DataSheet: 78SR114HC PDF

Country of origin: -

Date code: -

78SR114HC Specifications

Type	Description
Series:	78SR100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	14.5V
Voltage - Input (Max):	30V
Voltage - Output 1:	13.9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	-
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
78SR110HC Match 55%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	78SR114HC vs 78SR110HC
78ST112HC Match 80%	Texas Instruments DC DC CONVERTER 12V	78SR114HC vs 78ST112HC
78SR115HC Match 90%	Texas Instruments DC DC CONVERTER 15V	78SR114HC vs 78SR115HC
78ST115HC Match 90%	Texas Instruments DC DC CONVERTER 15V	78SR114HC vs 78ST115HC
78SR112HC Match 80%	Texas Instruments DC DC CONVERTER 12V	78SR114HC vs 78SR112HC
PT78ST110H Match 55%	Texas Instruments DC DC CONVERTER 10V	78SR114HC vs PT78ST110H
