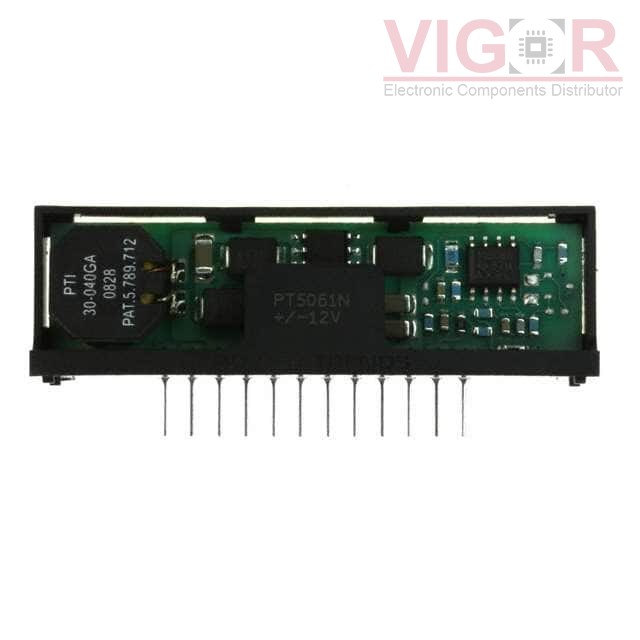

PT5061N

Part No :: PT5061N

Manufacturer: Texas Instruments

VIGOR # :: 5026452

Description: DC DC CONVERTER +/-12V

Catalog: DC DC Converters

DataSheet: PT5061N PDF

Country of origin: -

Date code: -

PT5061N Specifications

Type	Description
Series:	PT5060 (9W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	2
Voltage - Input (Min):	4.75V
Voltage - Input (Max):	11V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA, 250mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	0°C ~ 85°C
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
