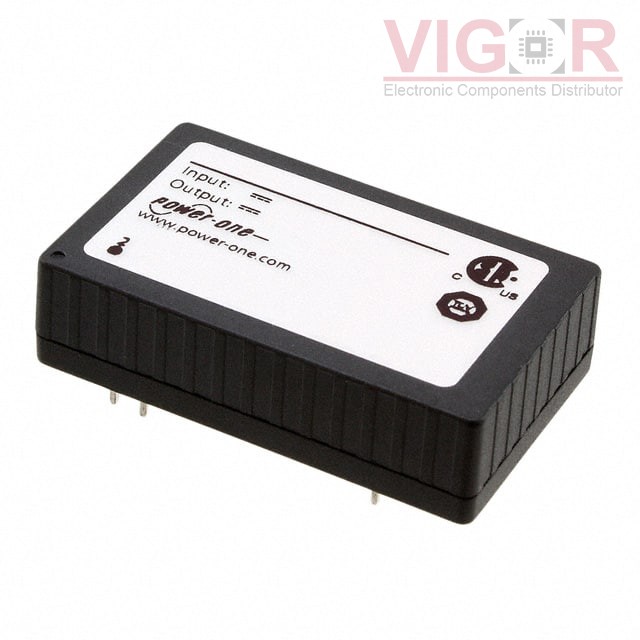

5IMX4-05-9

Part No :: 5IMX4-05-9

Manufacturer: Power-One (Bel Power Solutions)

VIGOR # :: 5026618

Description: DC DC CONVERTER 5V 4W

Catalog: DC DC Converters

DataSheet: 5IMX4-05-9 PDF

Country of origin: -

Date code: -

5IMX4-05-9 Specifications

Type	Description
Series:	Melcher IMX4 (4W)
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module, Conformal Coated
Number of Outputs:	1
Voltage - Input (Min):	4.7V
Voltage - Input (Max):	16.8V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	700mA
Power (Watts):	4 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	OCP, OTP, OVP, SCP
Operating Temperature:	-40°C ~ 71°C
Efficiency:	83%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 13 Leads
Size / Dimension:	1.30" L x 0.79" W x 0.33" H (33.0mm x 20.1mm x 8.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
5IMX4-05-8 Match 100%	Power-One (Bel Power Solutions) DC DC CONVERTER 5V 4W	5IMX4-05-9 vs 5IMX4-05-8
