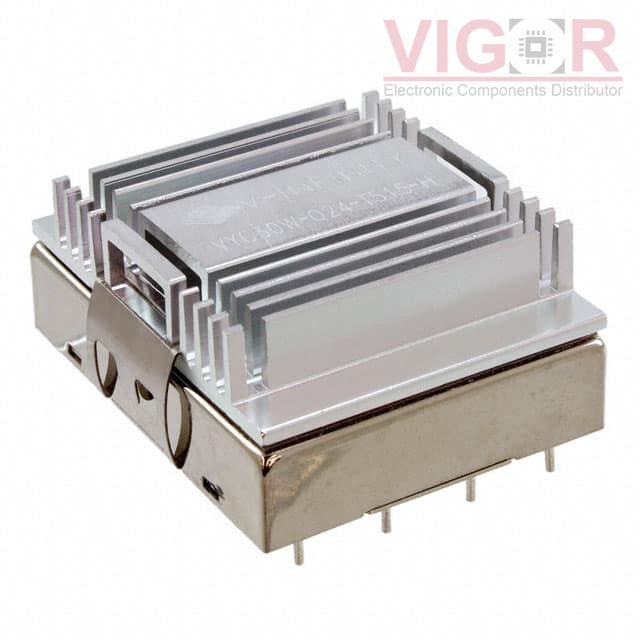

VYC30W-Q24-T515-H

Part No :: VYC30W-Q24-T515-H

Manufacturer: CUI Inc.

VIGOR # :: 5028161

Description: DC DC CONVERTER 5V +/-15V 30W

Catalog: DC DC Converters

DataSheet: VYC30W-Q24-T515-H PDF

Country of origin: -

Date code: -

VYC30W-Q24-T515-H Specifications

Type	Description
Series:	VYC30W (30W)
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	3
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	15V
Voltage - Output 3:	-15V
Voltage - Output 4:	-
Current - Output (Max):	3A, 500mA, 500mA
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module
Size / Dimension:	2.00" L x 1.82" W x 0.91" H (50.8mm x 46.2mm x 23.0mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-
