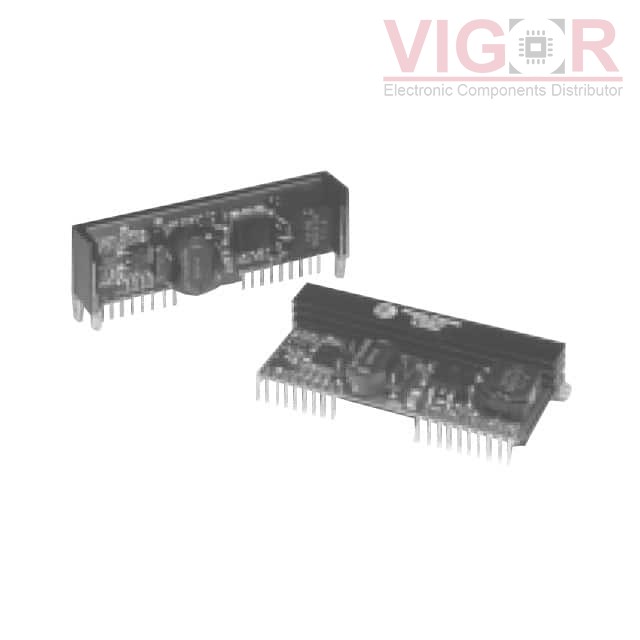

PT3322C

Part No :: PT3322C

Manufacturer: Texas Instruments

VIGOR # :: 5029977

Description: DC DC CONVERTER 5V 30W

Catalog: DC DC Converters

DataSheet: PT3322C PDF

Country of origin: -

Date code: -

PT3322C Specifications

Type	Description
Series:	PT3320 (30W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	84%
Mounting Type:	Surface Mount
Package / Case:	19-SMD Module
Size / Dimension:	3.03" L x 1.28" W x 0.50" H (77.0mm x 32.5mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT4561C Match 52%	VIGOR DC-DC POWER SUPPLY MODULE	PT3322C vs PT4561C
PT3321C Match 52%	VIGOR DC-DC POWER SUPPLY MODULE	PT3322C vs PT3321C
PT4562C Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PT3322C vs PT4562C
PT4567C Match 52%	Texas Instruments DC DC CONVERTER 1.8V 30W	PT3322C vs PT4567C
PT3326C Match 52%	Texas Instruments DC DC CONVERTER 2.5V 30W	PT3322C vs PT3326C
PT3325C Match 52%	Texas Instruments DC DC CONVERTER 2V 30W	PT3322C vs PT3325C
