PT3104C

PT3104C

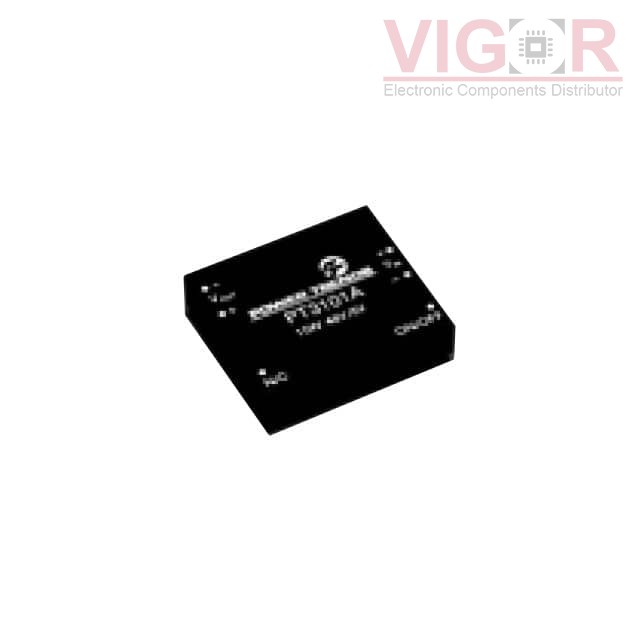

Image is for reference,
please contact us to get the real picture

Part No :

PT3104C

Manufacturer
Texas Instruments
Description
DC DC CONVERTER 5V 15W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 13 - Oct 17 2025
DataSheet
PT3104C PDF
Availability
679 pieces
Unit Price
$0.00000

Current price of PT3104C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT3104C Specifications
Type Description
Series:PT3100 (15W)
Package:Tray
Part Status:Obsolete
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):18V
Voltage - Input (Max):40V
Voltage - Output 1:5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):3A
Power (Watts):15 W
Voltage - Isolation:500 V
Applications:ITE (Commercial)
Features:Remote On/Off
Operating Temperature:-20°C ~ 70°C
Efficiency:80%
Mounting Type:Surface Mount
Package / Case:6-SMD Module, 5 Leads
Size / Dimension:1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
