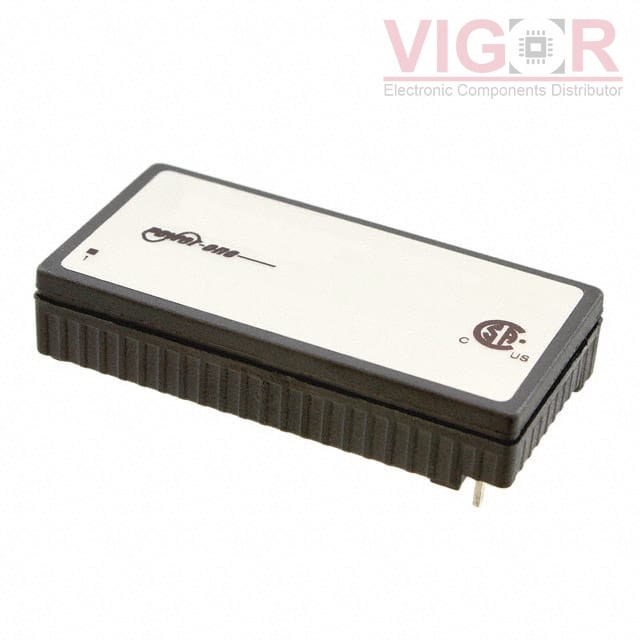

20IMX7-05-8

Part No :: 20IMX7-05-8

Manufacturer: Power-One (Bel Power Solutions)

VIGOR # :: 5033624

Description: DC DC CONVERTER 5.1V 7W

Catalog: DC DC Converters

DataSheet: 20IMX7-05-8 PDF

Country of origin: -

Date code: -

20IMX7-05-8 Specifications

Type	Description
Series:	Melcher IMX7 (7W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module, Conformal Coated
Number of Outputs:	1
Voltage - Input (Min):	8.4V
Voltage - Input (Max):	36V
Voltage - Output 1:	5.1V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.2A
Power (Watts):	7 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial), Railway
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	14-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
20IMX7-03-8G Match 55%	Power-One (Bel Power Solutions) DC DC CONVERTER 3.3V 7W	20IMX7-05-8 vs 20IMX7-03-8G
20IMX7-05-8G Match 97%	Power-One (Bel Power Solutions) DC DC CONVERTER 5.1V 7W	20IMX7-05-8 vs 20IMX7-05-8G
20IMX7-03-8 Match 55%	Power-One (Bel Power Solutions) DC DC CONVERTER 3.3V 7W	20IMX7-05-8 vs 20IMX7-03-8
