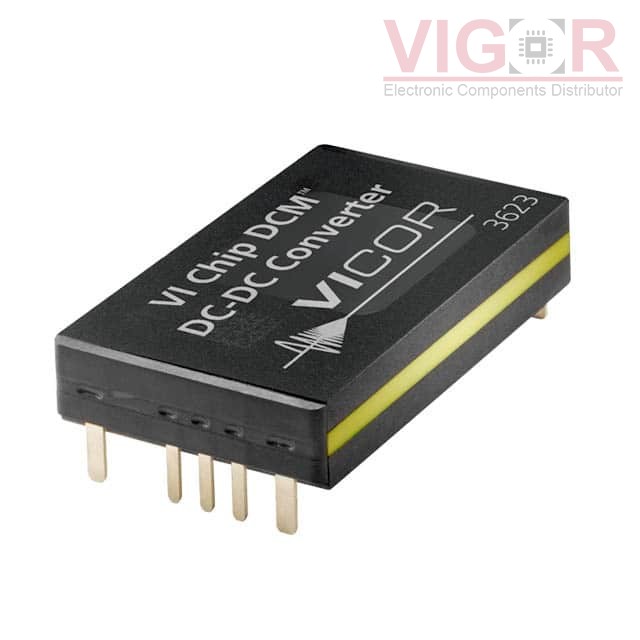

DCM24AP480M320A50

Part No :: DCM24AP480M320A50

Manufacturer: Vicor

VIGOR # :: 5036119

Description: DC DC CONVERTER 48V 320W

Catalog: DC DC Converters

DataSheet: DCM24AP480M320A50 PDF

Country of origin: -

Date code: -

DCM24AP480M320A50 Specifications

Type	Description
Series:	VI Chip® DCM® (320W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	48V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6.67A
Power (Watts):	320 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-55°C ~ 125°C
Efficiency:	92.5%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCM3623T36G53C2M00 Match 100%	Vicor DC DC CONVERTER 48V 320.2W	DCM24AP480M320A50 vs DCM3623T36G53C2M00
DCM3623T50M53C2M00 Match 100%	Vicor DC DC CONVERTER 48V 320.2W	DCM24AP480M320A50 vs DCM3623T50M53C2M00
DCM3623T36G40C2M00 Match 63%	Vicor DC DC CONVERTER 36V 320.4W	DCM24AP480M320A50 vs DCM3623T36G40C2M00
DCM3623T50T53A6M00 Match 51%	Vicor DC DC CONVERTER 48V 160W	DCM24AP480M320A50 vs DCM3623T50T53A6M00
MDCM28AP480M320A50 Match 100%	Vicor DC DC CONVERTER 48V 320W	DCM24AP480M320A50 vs MDCM28AP480M320A50
MDCM30AP480M160A50 Match 50%	Vicor DC DC CONVERTER 48V 160W	DCM24AP480M320A50 vs MDCM30AP480M160A50

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 87

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of DCM24AP480M320A50 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
