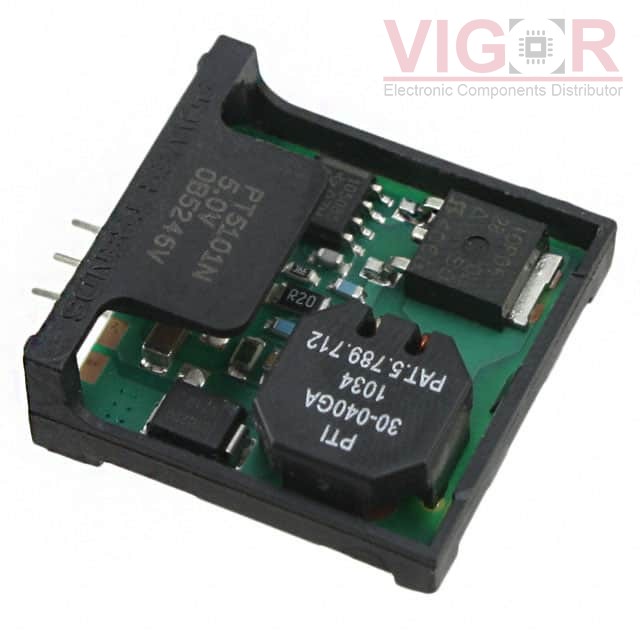

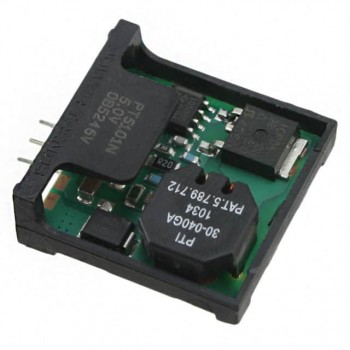

PT5103N

Part No :: PT5103N

Manufacturer: Texas Instruments

VIGOR # :: 5036916

Description: DC DC CONVERTER 3.3V 3W

Catalog: DC DC Converters

DataSheet: PT5103N PDF

Country of origin: -

Date code: -

PT5103N Specifications

Type	Description
Series:	PT5100
Package:	Tray
Part Status:	Obsolete
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	26V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	3 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	1.00" L x 0.38" W x 1.02" H (25.4mm x 9.7mm x 25.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TPSM84203EAB Match 74%	Texas Instruments DC DC CONVERTER 3.3V	PT5103N vs TPSM84203EAB
173010378 Match 100%	Würth Elektronik Midcom DC DC CONVERTER 3.3V 3W	PT5103N vs 173010378
173010342 Match 100%	Würth Elektronik Midcom DC DC CONVERTER 3.3V	PT5103N vs 173010342
R-78E3.3-1.0 Match 100%	RECOM Power DC DC CONVERTER 3.3V 3W	PT5103N vs R-78E3.3-1.0
TSR 1-2433 Match 97%	TRACO Power DC DC CONVERTER 3.3V 3.3W	PT5103N vs TSR 1-2433
TR10S3V3 Match 100%	XP Power DC DC CONVERTER 3.3V	PT5103N vs TR10S3V3
