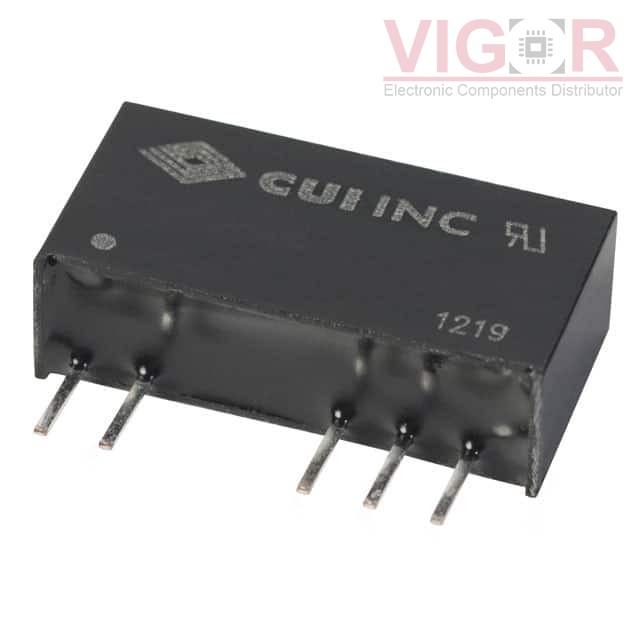

VESD1-S12-D9-SIP

Part No :: VESD1-S12-D9-SIP

Manufacturer: CUI Inc.

VIGOR # :: 5037236

Description: DC DC CONVERTER +/-9V 1W

Catalog: DC DC Converters

DataSheet: VESD1-S12-D9-SIP PDF

Country of origin: -

Date code: -

VESD1-S12-D9-SIP Specifications

Type	Description
Series:	VESD1-SIP (1W)
Package:	Bulk
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	9V
Voltage - Output 2:	-9V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	56mA, 56mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	76%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
