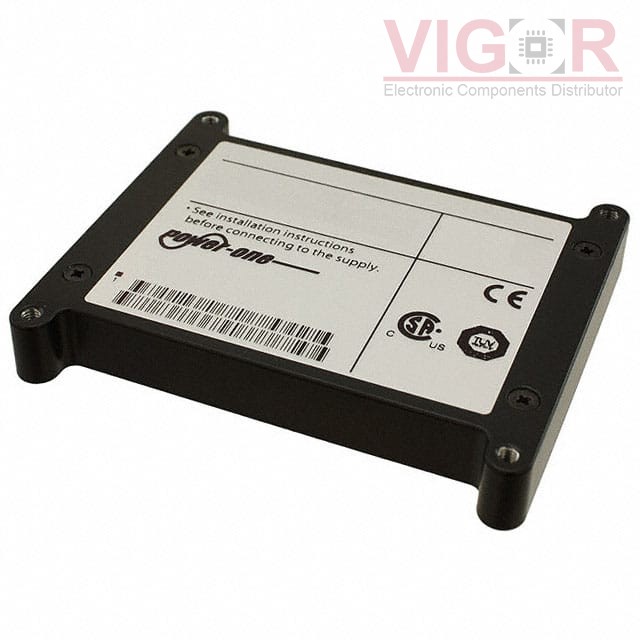

20IMX35D05D15-8

Part No :: 20IMX35D05D15-8

Manufacturer: Power-One (Bel Power Solutions)

VIGOR # :: 5038535

Description: DC DC CONVERTER 5V 15V 15V 35W

Catalog: DC DC Converters

DataSheet: 20IMX35D05D15-8 PDF

Country of origin: -

Date code: -

20IMX35D05D15-8 Specifications

Type	Description
Series:	Melcher IMX35 (35W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module, Conformal Coated
Number of Outputs:	4
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	15V
Voltage - Output 3:	15V
Voltage - Output 4:	-
Current - Output (Max):	1.35A, 550mA, 550mA
Power (Watts):	35 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial), Railway
Features:	OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	19-DIP Module
Size / Dimension:	3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
