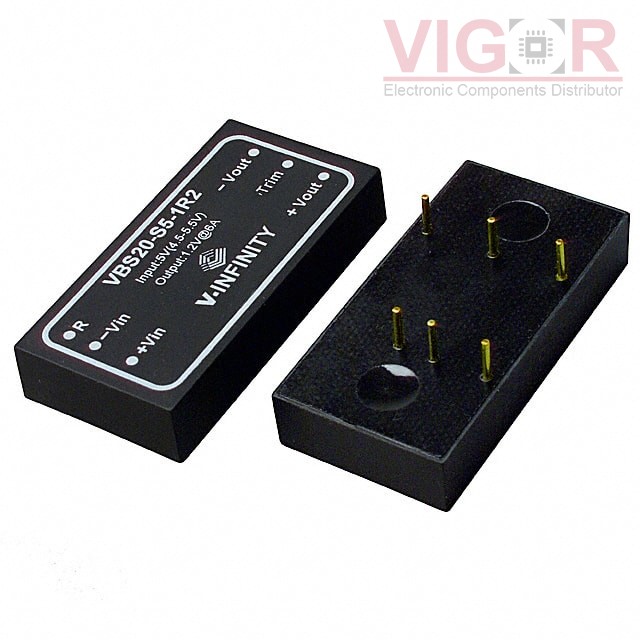

VBS20-S5-1R2

Part No :: VBS20-S5-1R2

Manufacturer: CUI Inc.

VIGOR # :: 5039864

Description: DC DC CONVERTER 1.2V 20W

Catalog: DC DC Converters

DataSheet: VBS20-S5-1R2 PDF

Country of origin: -

Date code: -

VBS20-S5-1R2 Specifications

Type	Description
Series:	VBS20
Package:	Box
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	1.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	20 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, UVLO
Operating Temperature:	-25°C ~ 71°C
Efficiency:	76%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH05050YAH Match 100%	VIGOR 6A NON-ISOLATED DDR/QDR POLA MEM	VBS20-S5-1R2 vs PTH05050YAH
PTH05050WAD Match 97%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 0.8-3.6V 21W	VBS20-S5-1R2 vs PTH05050WAD
PTH05050WAH Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 6A	VBS20-S5-1R2 vs PTH05050WAH
MPDTH05050WAH Match 97%	Murata Power Solutions DC DC CONVERTER 0.8-3.6V 21W	VBS20-S5-1R2 vs MPDTH05050WAH
0RLE-06B1A0G Match 100%	Bel Fuse, Inc. DC DC CONVERTER 0.8-3.6V 20W	VBS20-S5-1R2 vs 0RLE-06B1A0G
PME5218TP Match 94%	Flex Power Modules DC DC CONVERTER 0.8-3.6V 22W	VBS20-S5-1R2 vs PME5218TP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 120

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of VBS20-S5-1R2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
