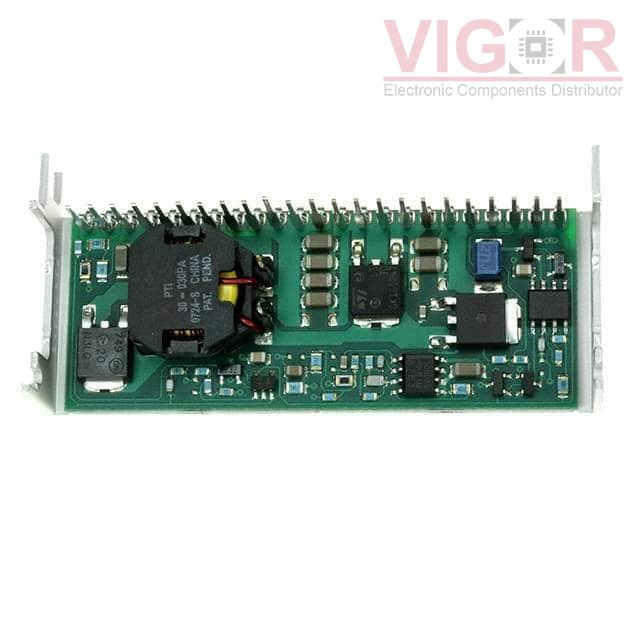

PT6936N

Part No :: PT6936N

Manufacturer: Texas Instruments

VIGOR # :: 5040398

Description: DC DC CONVERTER 3.3V 2.5V

Catalog: DC DC Converters

DataSheet: PT6936N PDF

Country of origin: -

Date code: -

PT6936N Specifications

Type	Description
Series:	Excalibur™ PT6935
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	3.3V
Voltage - Output 2:	2.5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	11A, 3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	23-SIP Module
Size / Dimension:	2.58" L x 0.60" W x 1.02" H (65.5mm x 15.2mm x 25.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
