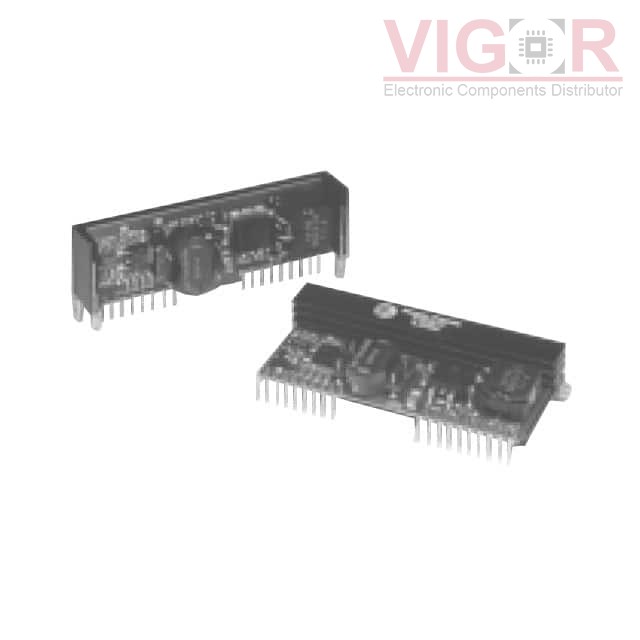

PT3323N

Part No :: PT3323N

Manufacturer: Texas Instruments

VIGOR # :: 5041058

Description: DC DC CONVERTER 12V 30W

Catalog: DC DC Converters

DataSheet: PT3323N PDF

Country of origin: -

Date code: -

PT3323N Specifications

Type	Description
Series:	PT3320 (30W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.5A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	19-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT3324N Match 71%	VIGOR DC-DC POWER SUPPLY MODULE	PT3323N vs PT3324N
PT4563N Match 100%	Texas Instruments DC DC CONVERTER 12V 30W	PT3323N vs PT4563N
PT4564N Match 71%	Texas Instruments DC DC CONVERTER 15V 30W	PT3323N vs PT4564N
PT4571N Match 63%	Texas Instruments DC DC CONVERTER 9V 30W	PT3323N vs PT4571N
