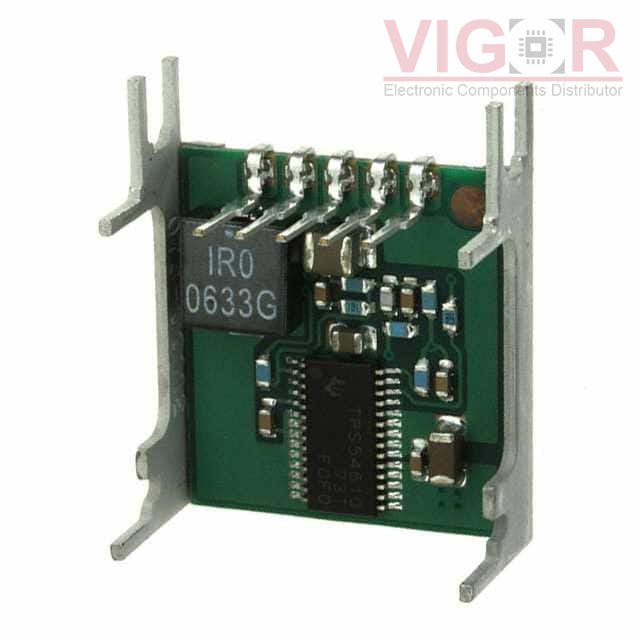

PT5403A

Part No :: PT5403A

Manufacturer: Texas Instruments

VIGOR # :: 5041428

Description: DC DC CONVERTER 2V

Catalog: DC DC Converters

DataSheet: PT5403A PDF

Country of origin: -

Date code: -

PT5403A Specifications

Type	Description
Series:	Excalibur™ PT5400
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole, Right Angle
Package / Case:	5-SIP Module
Size / Dimension:	1.11" L x 0.90" W x 0.31" H (28.2mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT5503A Match 61%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5403A vs PT5503A
PT5405A Match 61%	Texas Instruments DC DC CONVERTER 1.5V	PT5403A vs PT5405A
PT5404A Match 86%	Texas Instruments DC DC CONVERTER 1.8V	PT5403A vs PT5404A
SIL05E-05W3V3-HJ Match 86%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 0.75-3.63V 18W	PT5403A vs SIL05E-05W3V3-HJ
