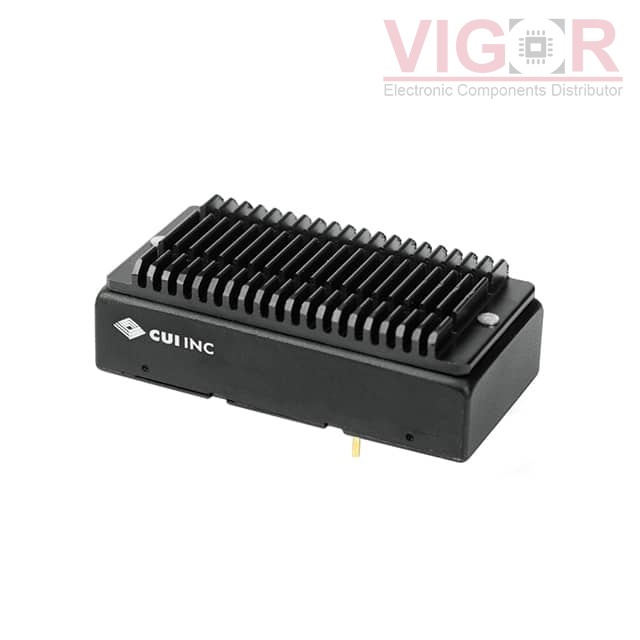

PYB15-Q24-S12-H

Part No :: PYB15-Q24-S12-H

Manufacturer: CUI Inc.

VIGOR # :: 5041856

Description: DC DC CONVERTER 12V 15W

Catalog: DC DC Converters

DataSheet: PYB15-Q24-S12-H PDF

Country of origin: -

Date code: -

PYB15-Q24-S12-H Specifications

Type	Description
Series:	PYB15 (15W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.25A
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.64" H (50.8mm x 25.4mm x 16.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CCG152412S Match 98%	TDK-Lambda, Inc. DC DC CONVERTER 12V 15W	PYB15-Q24-S12-H vs CCG152412S
PXB15-24WS12/NT Match 98%	TDK-Lambda, Inc. DC DC CONVERTER 12V 15W	PYB15-Q24-S12-H vs PXB15-24WS12/NT
LCD15-24S12W Match 96%	P-Duke Technology, Inc. ISOLATED /15W /VOUT:12	PYB15-Q24-S12-H vs LCD15-24S12W
PYB15-Q24-S12 Match 100%	CUI Inc. DC DC CONVERTER 12V 15W	PYB15-Q24-S12-H vs PYB15-Q24-S12
PDQ15-Q24-S12-D Match 100%	CUI Inc. DC DC CONVERTER 12V 15W	PYB15-Q24-S12-H vs PDQ15-Q24-S12-D
EC5BW-24S12A Match 100%	Cincon DC DC CONVERTER 12V 15W	PYB15-Q24-S12-H vs EC5BW-24S12A
