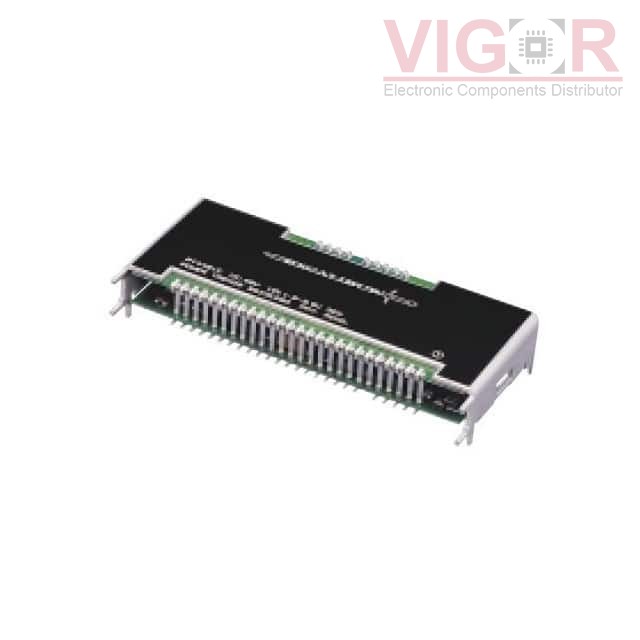

PT4681A

Part No :: PT4681A

Manufacturer: Texas Instruments

VIGOR # :: 5042038

Description: DC DC CONVERTER 5V 3.3V 100W

Catalog: DC DC Converters

DataSheet: PT4681A PDF

Country of origin: -

Date code: -

PT4681A Specifications

Type	Description
Series:	Excalibur™ PT4680
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	3.3V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	15A, 15A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole, Right Angle
Package / Case:	26-SIP Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
