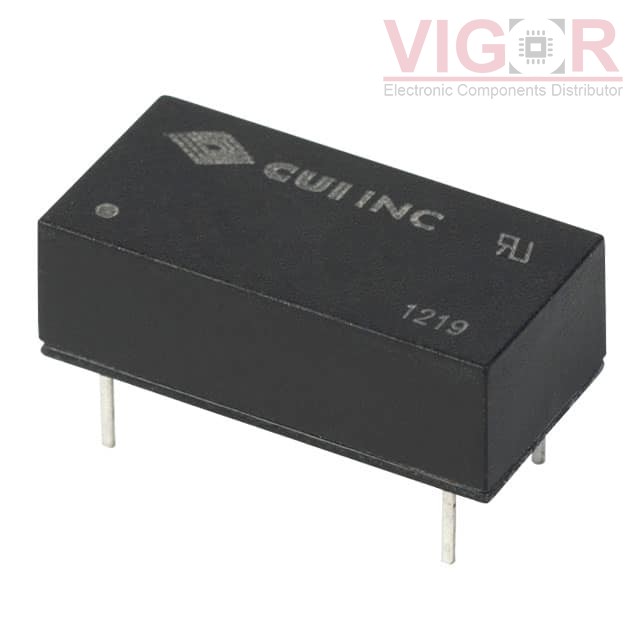

VASD1-S24-D5-DIP

Part No :: VASD1-S24-D5-DIP

Manufacturer: CUI Inc.

VIGOR # :: 5042876

Description: DC DC CONVERTER +/-5V 1W

Catalog: DC DC Converters

DataSheet: VASD1-S24-D5-DIP PDF

Country of origin: -

Date code: -

VASD1-S24-D5-DIP Specifications

Type	Description
Series:	VASD1-DIP (1W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	73%
Mounting Type:	Through Hole
Package / Case:	14-DIP Module (300 mil, 6 Leads)
Size / Dimension:	0.79" L x 0.39" W x 0.28" H (20.1mm x 9.9mm x 7.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
