PT6942N

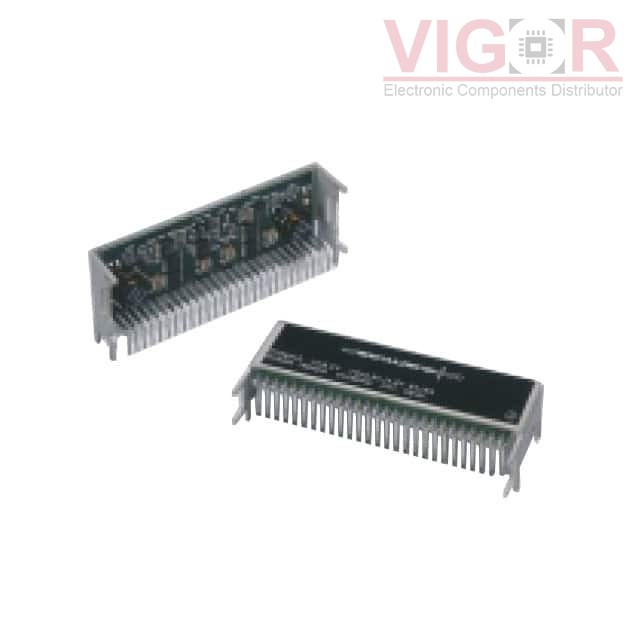

Image is for reference,
please contact us to get the real picture

Part No :: PT6942N

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 3.3V 1.8V

Catalog: DC DC Converters

DataSheet: PT6942N PDF

Availability: 805 pieces

Unit Price: ~~$0.00000~~

Current price of PT6942N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PT6942N Specifications

Type	Description
Series:	Excalibur™ PT6940
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	3.3V
Voltage - Output 2:	1.8V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A, 6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	91%
Mounting Type:	Through Hole
Package / Case:	27-SIP Module, Vertical
Size / Dimension:	3.00" L x 0.66" W x 1.02" H (76.2mm x 16.8mm x 25.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
