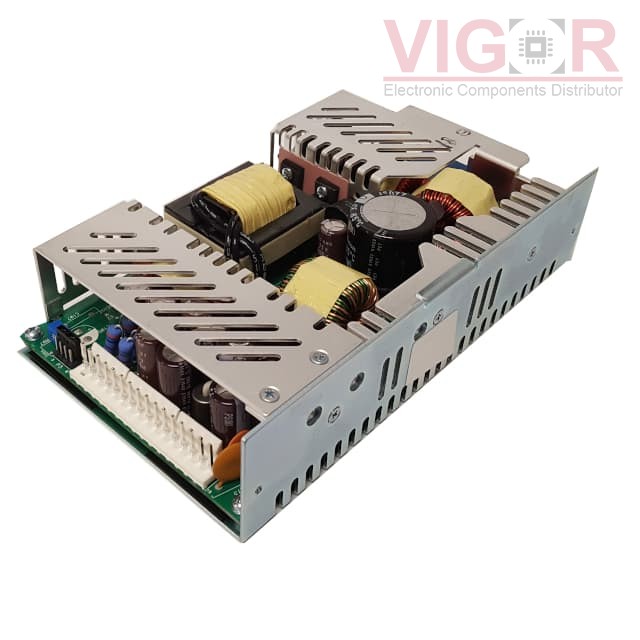

1010566CH

Part No :: 1010566CH

Manufacturer: Integrated Power Designs

VIGOR # :: 1777214

Description: AC/DC CONV 5V/24V +/-15V 185W

Catalog: AC DC Converters

DataSheet: 1010566CH PDF

Country of origin: -

Date code: -

1010566CH Specifications

Type	Description
Series:	REL-185 (185W)
Package:	Box
Part Status:	Active
Type:	Chassis
Number of Outputs:	4
Voltage - Input:	85 ~ 264 VAC
Voltage - Output 1:	5V
Voltage - Output 2:	24V
Voltage - Output 3:	15V
Voltage - Output 4:	-15V
Current - Output (Max):	20A, 3A, 2A, 2A
Power (Watts):	185W
Applications:	Industrial, ITE (Commercial), Laboratory, Medical
Voltage - Isolation:	-
Efficiency:	82%
Operating Temperature:	0°C ~ 70°C (With Derating)
Features:	Adjustable Output, Remote Sense, Universal Input
Mounting Type:	Chassis Mount
Size / Dimension:	7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm)
Approval Agency:	CE, cURus, TUV
Standard Number:	60601-1; 62368-1

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 50

Shipped from

HK warehouse

Expected Shipping Date

Jan 09 - Jan 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$238.04~~	~~$238.04~~

Current price of 1010566CH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

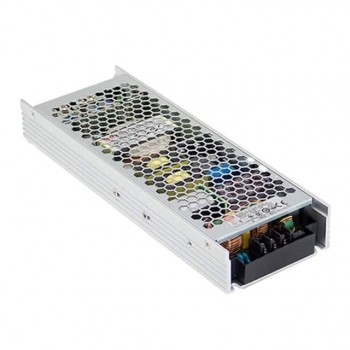

UHP-500-48

AC/DC CONVERTER 48V 502W

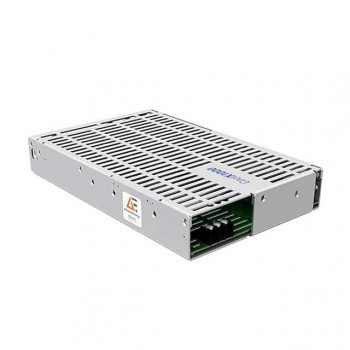

CX10S-HDDB0H-P-A-DK00000
