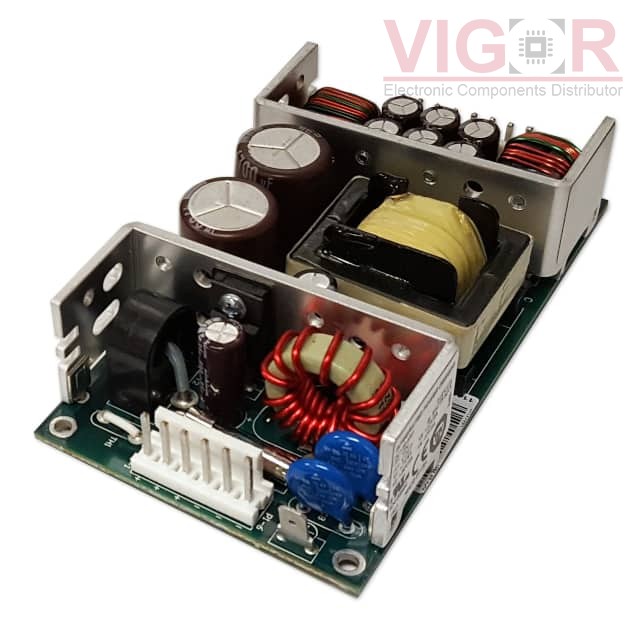

1011537

Part No :: 1011537

Manufacturer: Integrated Power Designs

VIGOR # :: 1722371

Description: DC/DC CONV 5V -5V 12V -12V 80W

Catalog: DC DC Converters

DataSheet: 1011537 PDF

Country of origin: -

Date code: -

1011537 Specifications

Type	Description
Series:	DC1-80 (80W)
Package:	Box
Part Status:	Active
Type:	Open Frame
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Number of Outputs:	4
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	12V
Voltage - Output 4:	-12V
Current - Output (Max):	6A, 5A, 2A, 2A
Power (Watts):	80W
Voltage - Isolation:	-
Applications:	ITE (Commercial), Medical
Efficiency:	82%
Operating Temperature:	0°C ~ 70°C (With Derating)
Mounting Type:	Chassis Mount
Size / Dimension:	4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm)
Approval Agency:	CE, cURus, TUV
Standard Number:	60601-1; 62368-1

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$111.91~~	~~$111.91~~

Current price of 1011537 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
