CB1AH-24V

CB1AH-24V

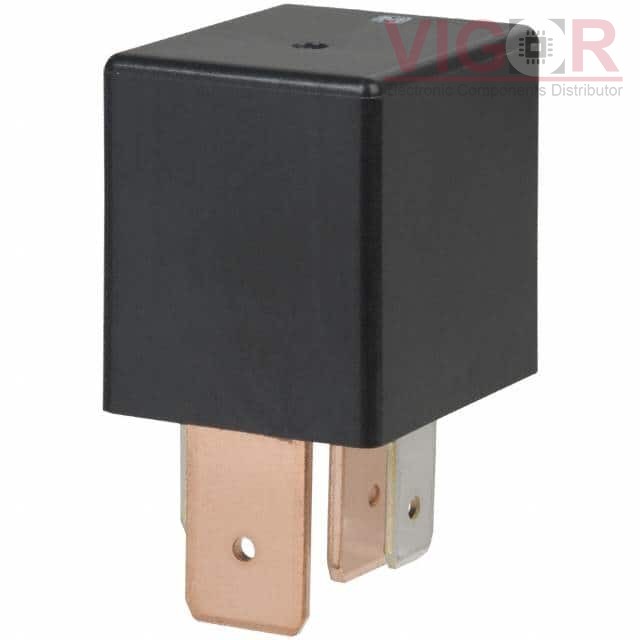

Image is for reference,
please contact us to get the real picture

Part No :

CB1AH-24V

Manufacturer
Panasonic
Description
RELAY AUTOMOTIVE SPST 70A 24V
Catalog
Automotive Relays
Shipped from
HK warehouse
Expected Shipping Date
Oct 01 - Oct 05 2025
DataSheet
CB1AH-24V PDF
Availability
0 pieces
Unit Price
$7.06000

Current price of CB1AH-24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CB1AH-24V Specifications
Type Description
Series:CB
Package:Bulk
Part Status:Active
Coil Type:Non Latching
Coil Current:75 mA
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):70 A
Switching Voltage:28VDC - Nom
Must Operate Voltage:14 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:15 ms
Features:Sealed - Fully
Mounting Type:Socketable
Termination Style:Plug In, Quick Connect - Multiple Sizes
Operating Temperature:-40°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT G8ND-2S-DC12

G8ND-2S-DC12

RELAY AUTOMOTIVE SPDT 30A 12V

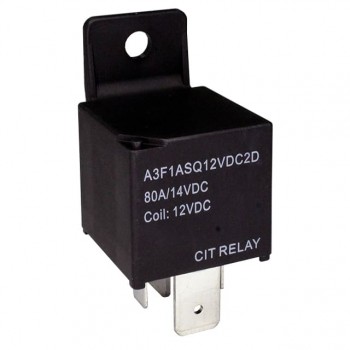

HOT A3F1ASQ12VDC2D
