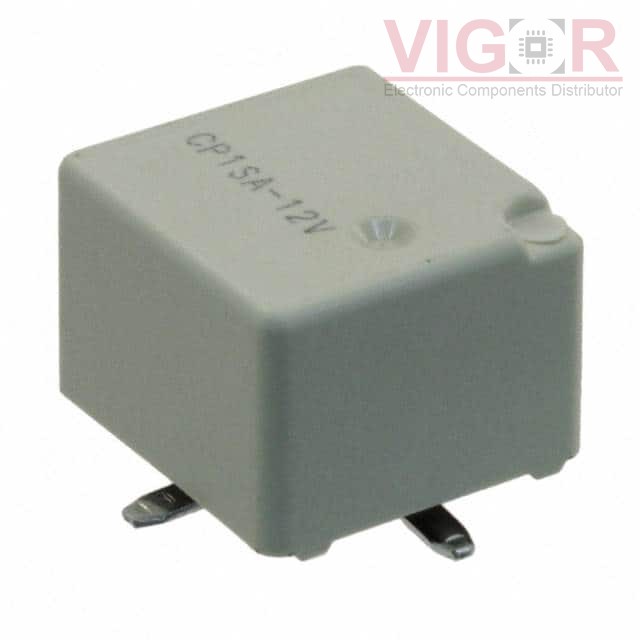

CP1SA-12V-Z

Product image
Product thumb
Part No :

CP1SA-12V-Z

Manufacturer
Panasonic
VIGOR # :

4193032

Description
RELAY AUTOMOTIVE SPDT 20A 12V
Catalog
Automotive Relays
DataSheet
CP1SA-12V-Z PDF
Country of origin
-
Date code
-
ads
CP1SA-12V-Z Specifications
Type Description
Series:CP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Coil Type:Non Latching
Coil Current:53.3 mA
Coil Voltage:12VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:14VDC - Nom
Must Operate Voltage:7.2 VDC
Must Release Voltage:1 VDC
Operate Time:10 ms
Release Time:10 ms
Features:Sealed - Fully
Mounting Type:Surface Mount
Termination Style:Gull Wing
Operating Temperature:-40°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 02 - Jan 06 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.89 $3.89
300 $2.59 $777.60
600 $2.43 $1 458.00
1500 $2.27 $3 402.00
3000 $2.23 $6 682.50

Current price of CP1SA-12V-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
A21ASQ12VDC1.6R

A21ASQ12VDC1.6R

RELAY AUTO SPST 12VDC QC RESISTO

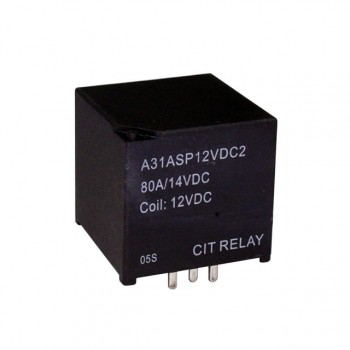

A31ASP12VDC2D
