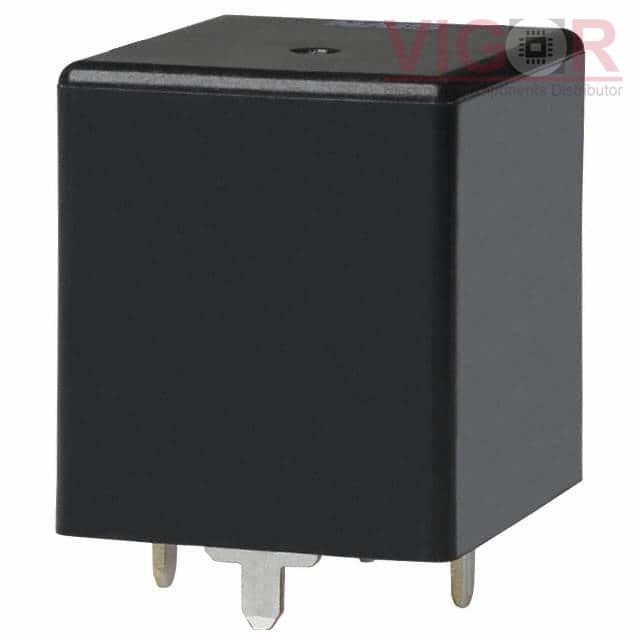

CB1AF-D-P-24V

Part No :: CB1AF-D-P-24V

Manufacturer: Panasonic

VIGOR # :: 5048578

Description: RELAY AUTOMOTIVE SPST 20A 24V

Catalog: Automotive Relays

DataSheet: CB1AF-D-P-24V PDF

Country of origin: -

Date code: -

CB1AF-D-P-24V Specifications

Type	Description
Series:	CB
Package:	Bulk
Part Status:	Obsolete
Coil Type:	Non Latching
Coil Current:	75 mA
Coil Voltage:	24VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	20 A
Switching Voltage:	28VDC - Nom
Must Operate Voltage:	14 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	15 ms
Release Time:	-
Features:	Diode, Sealed - Flux Protection
Mounting Type:	Through Hole
Termination Style:	PC Pin
Operating Temperature:	-40°C ~ 85°C
