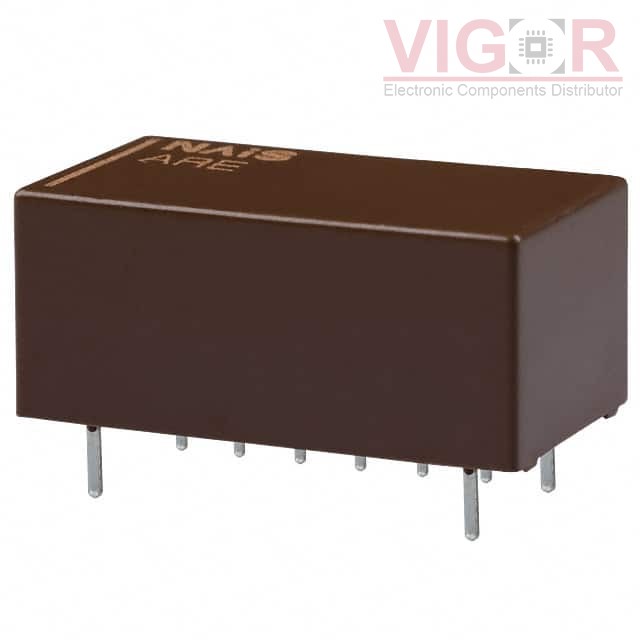

ARE1309

Part No :: ARE1309

Manufacturer: Panasonic

Description: RELAY RF SPDT 500MA 9V

Catalog: High Frequency (RF) Relays

DataSheet: ARE1309 PDF

Availability: 0 pieces

Current price of ARE1309 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ARE1309 Specifications

Type	Description
Series:	ARE
Package:	Tube
Part Status:	Not For New Designs
Coil Type:	Non Latching
Coil Current:	22.2 mA
Coil Voltage:	9VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	500 mA
Switching Voltage:	30VDC - Max
Must Operate Voltage:	6.75 VDC
Must Release Voltage:	0.9 VDC
Operate Time:	10 ms
Release Time:	5 ms
Features:	-
Mounting Type:	Through Hole
Termination Style:	PC Pin
Operating Temperature:	-40°C ~ 70°C

Please confirm the specifications of the products when ordering.
