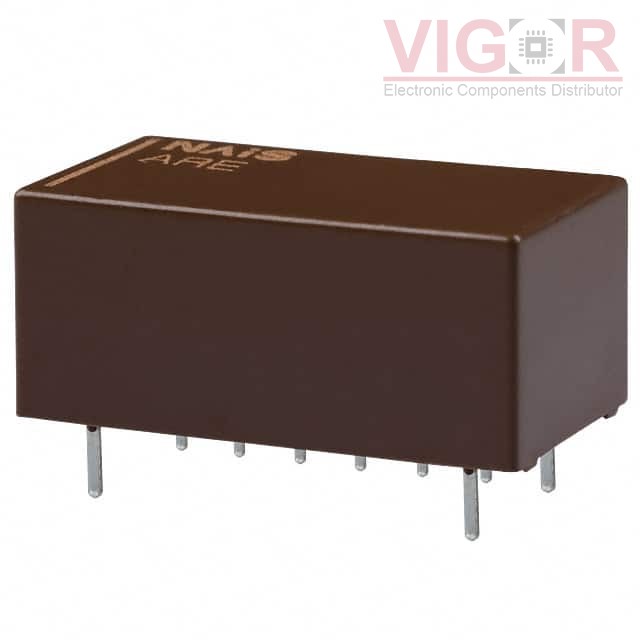

ARE1003

Part No :: ARE1003

Manufacturer: Panasonic

Description: RELAY RF 1 FORM C 3V

Catalog: High Frequency (RF) Relays

DataSheet: ARE1003 PDF

Availability: 41 pieces

Current price of ARE1003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ARE1003 Specifications

Type	Description
Series:	ARE
Package:	Bulk
Part Status:	Not For New Designs
Coil Type:	Non Latching
Coil Current:	66.7 mA
Coil Voltage:	3VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	500 mA
Switching Voltage:	30VDC - Max
Must Operate Voltage:	2.25 VDC
Must Release Voltage:	0.3 VDC
Operate Time:	10 ms
Release Time:	5 ms
Features:	-
Mounting Type:	Through Hole
Termination Style:	PC Pin
Operating Temperature:	-40°C ~ 70°C
