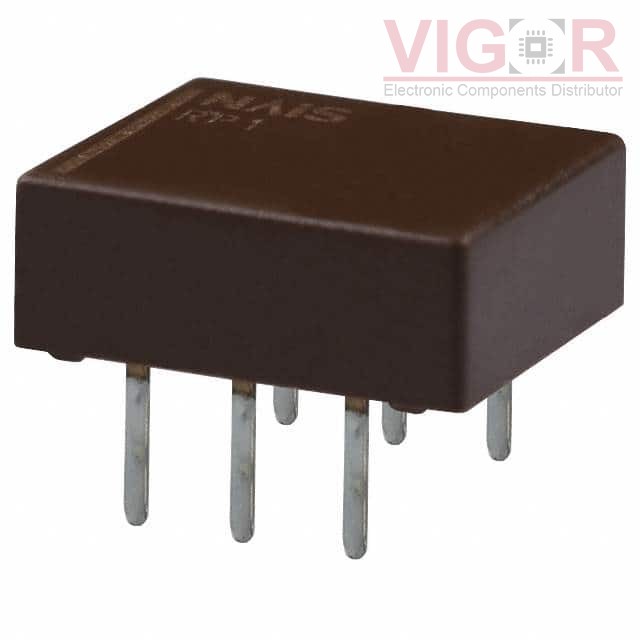

RP1-H-5V

Part No :: RP1-H-5V

Manufacturer: Panasonic

VIGOR # :: 5048737

Description: RELAY RF SPDT 100MA 5V

Catalog: High Frequency (RF) Relays

DataSheet: RP1-H-5V PDF

Country of origin: -

Date code: -

RP1-H-5V Specifications

Type	Description
Series:	RP
Package:	Tube
Part Status:	Obsolete
Coil Type:	Non Latching
Coil Current:	28.1 mA
Coil Voltage:	5VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	100 mA
Switching Voltage:	30VDC - Nom
Must Operate Voltage:	3.75 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	3 ms
Release Time:	2 ms
Features:	-
Mounting Type:	Through Hole
Termination Style:	PC Pin
Operating Temperature:	-40°C ~ 70°C
