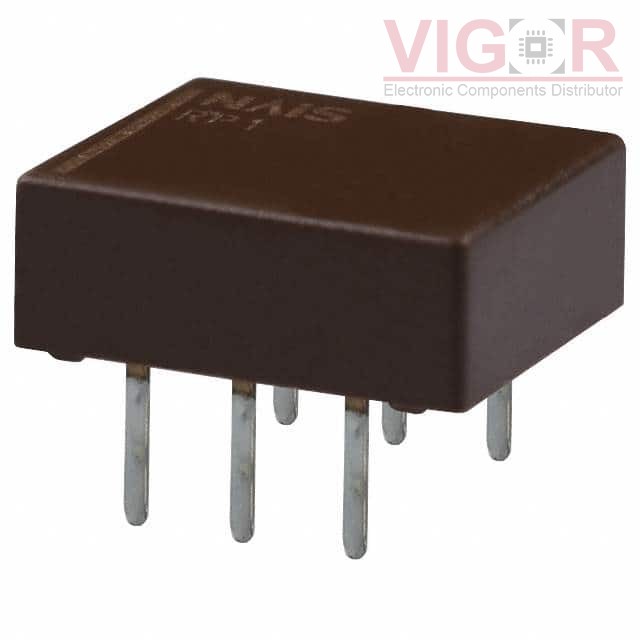

RP1-12V

Part No :: RP1-12V

Manufacturer: Panasonic

VIGOR # :: 5048800

Description: RELAY RF SPDT 100MA 12V

Catalog: High Frequency (RF) Relays

DataSheet: RP1-12V PDF

Country of origin: -

Date code: -

RP1-12V Specifications

Type	Description
Series:	RP
Package:	Tube
Part Status:	Obsolete
Coil Type:	Non Latching
Coil Current:	11.7 mA
Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	100 mA
Switching Voltage:	30VDC - Nom
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	3 ms
Release Time:	2 ms
Features:	-
Mounting Type:	Through Hole
Termination Style:	PC Pin
Operating Temperature:	-40°C ~ 70°C
