JW2ASN-DC18V

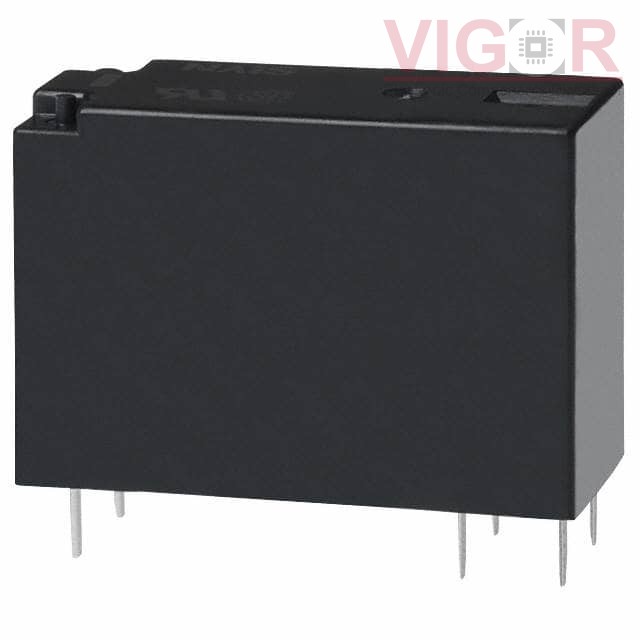

Image is for reference,
please contact us to get the real picture

Part No :: JW2ASN-DC18V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE DPST 5A 18V

Catalog: Power Relays, Over 2 Amps

DataSheet: JW2ASN-DC18V PDF

Availability: 0 pieces

Unit Price: ~~$2.35800~~

Current price of JW2ASN-DC18V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JW2ASN-DC18V Specifications

Type	Description
Series:	JW
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	18VDC
Contact Form:	DPST-NO (2 Form A)
Contact Rating (Current):	5 A
Switching Voltage:	250VAC, 30VDC - Max
Coil Current:	29 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	-
Must Operate Voltage:	12.6 VDC
Must Release Voltage:	1.8 VDC
Operate Time:	15 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 60°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
