JS1AF-B-24V-F

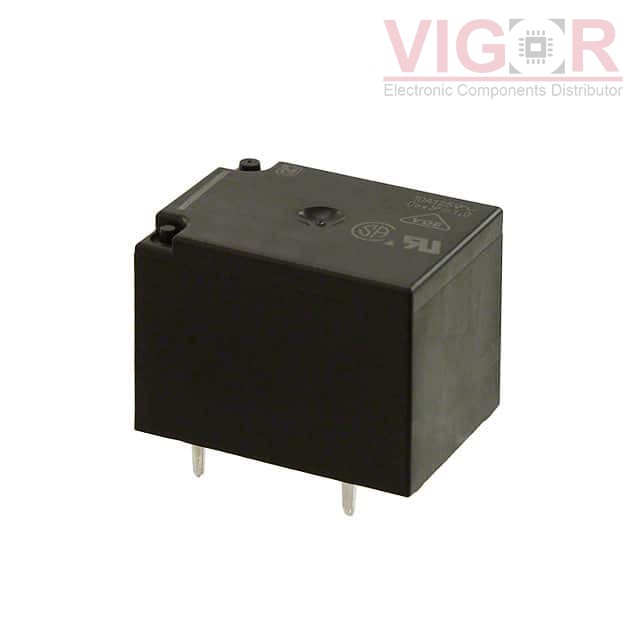

Product image
Product thumb
Part No :

JS1AF-B-24V-F

Manufacturer
Panasonic
VIGOR # :

2689673

Description
RELAY GEN PURPOSE SPST 10A 24V
Catalog
Power Relays, Over 2 Amps
DataSheet
JS1AF-B-24V-F PDF
Country of origin
-
Date code
-
ads
JS1AF-B-24V-F Specifications
Type Description
Series:JS
Package:Bulk
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):10 A
Switching Voltage:250VAC, 100VDC - Max
Coil Current:15 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class B
Must Operate Voltage:16.8 VDC
Must Release Voltage:2.4 VDC
Operate Time:10 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 298
Shipped from
HK warehouse
Expected Shipping Date
Jun 01 - Jun 05 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.6300 $1.63
10 $1.5300 $15.30
25 $1.3600 $34.00
50 $1.2920 $64.60
100 $1.2240 $122.40
250 $1.0880 $272.00
500 $1.0200 $510.00
1000 $0.9520 $952.00
5000 $0.9180 $4 590.00

Current price of JS1AF-B-24V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
