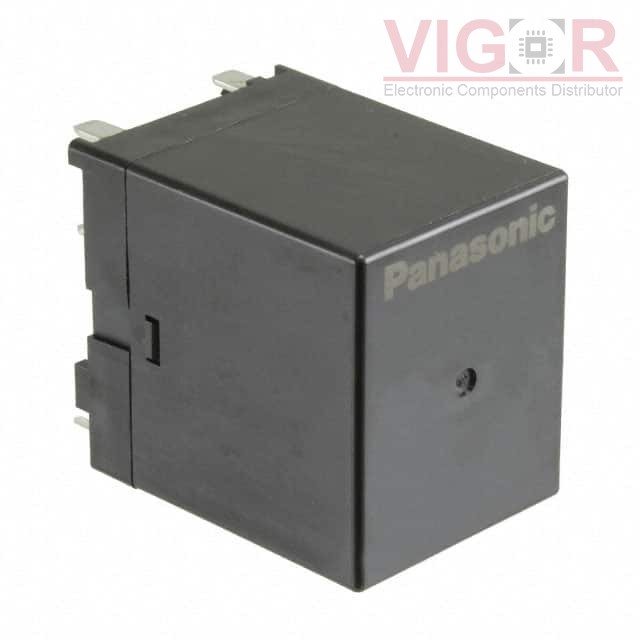

AHES4192

Part No :: AHES4192

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE 3PST 35A 24V

Catalog: Power Relays, Over 2 Amps

DataSheet: AHES4192 PDF

Availability: 0 pieces

Current price of AHES4192 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AHES4192 Specifications

Type	Description
Series:	HE-S
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	24VDC
Contact Form:	3PST-2NO/1NC (2 Form A, 1 Form B)
Contact Rating (Current):	35 A
Switching Voltage:	277VAC - Nom
Coil Current:	78 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	Class F
Must Operate Voltage:	18 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	30 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 55°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
